Product Code: PXU11A30

Suitable for 100-240 VAC, 50/60 Hz systems
Secure wire clamp screw connection
Vibration resistance from 10 to 55 Hz
IP65 rated for dust and water protection
CE, RoHS, UL certified for safety

Specifications

General

Product Type

PID Controller

Brand

Red Lion

Series

PXU

Electrical

Analog Resolution 16 bit input	Channel Isolation AC power to all other I/O: 250 V working (2300 V for 1 min); Relay contacts to all other I/O: 250 V working (2300 V for 1 min)	Digital Inputs 2
Output Ratings Control relay: 5 A at 250 V AC or 30 V DC; Alarm relay: 3 A at 250 V AC or 30 V DC	Input Ratings 0 to 5 V DC, 0 to 10 V DC, 0 to 20 mA DC, 4 to 20 mA DC, 0 to 50 mV DC	Input Type Thermocouple, RTD, DC voltage, DC current, millivolt
Output Type Relay	Power Consumption 5 VA	Supply Voltage 100 to 240 V AC
Terminal Type Wire-clamping screw terminals

Mechanical

Housing Material

Black plastic alloy

Mounting Method

Panel mount

Dimensions & Physical Data

Depth

71.5 mm

Height

95.8 mm

Width

48 mm

Environmental

Storage Temperature

-20 to 65 °C

Operating Temperature

0 to 50 °C

IP Rating

IP65

Communication & Control

Fieldbus Interface

RS485

Serial Ports

Supported Serial Protocols

Modbus RTU, Modbus ASCII

Safety, Standards & Compliance

Compliance Standards

CE, EN 61326-1, CISPR 11 Class A, EN 61010-1, RoHS, UKCA, UL E179259

Accessories & Additional Information

Development Software

Crimson 2.1

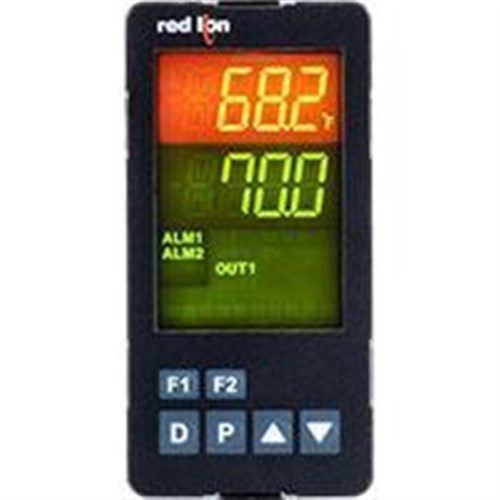

PXU-PID CONTROLLER,1/8 DIN UNI. IN,100 TO 240VAC PWR IN RELAY OUTPUT,RS-485 REDLION
