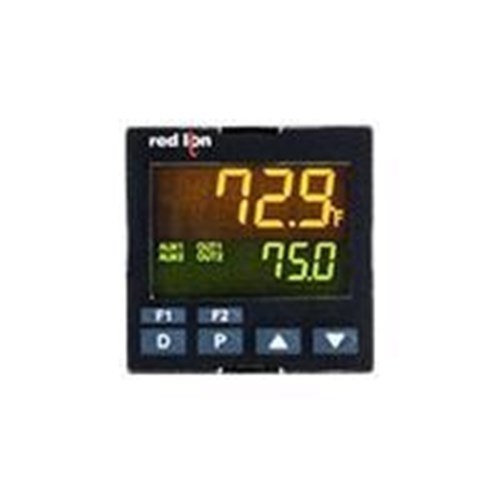

Product Code: PXU100B0

Compact PID controller for precise control
Operates at 24 VDC, ensuring energy efficiency
IP65 rating for dust and water resistance
Functions in temperatures from 0 to 50°C
Complies with CE, RoHS, UL standards

Specifications

General

Product Type

PID Controller

Brand

Red Lion

Series

PXU

Electrical

Analog Resolution 16 bit input	Channel Isolation DC power to sensor input: 50 V working (500 V for 1 min); Relay contacts to all other I/O: 250 V working (2300 V for 1 min)	Digital Inputs 0
Output Ratings Control relay: 5 A at 250 V AC or 30 V DC; Alarm relay: 3 A at 250 V AC or 30 V DC	Input Ratings 0 to 5 V DC, 0 to 10 V DC, 0 to 20 mA DC, 4 to 20 mA DC, 0 to 50 mV DC	Input Type Thermocouple, RTD, DC voltage, DC current, millivolt
Output Type Relay	Power Consumption 6 VA at 24 V AC, 8 VA at 24 V DC	Supply Voltage 24 V AC or 24 V DC
Terminal Type Wire-clamping screw terminals

Mechanical

Housing Material

Black plastic alloy

Mounting Method

Panel mount

Dimensions & Physical Data

Depth

79.7 mm

Height

48 mm

Width

48 mm

Environmental

Storage Temperature

-20 to 65 °C

Operating Temperature

0 to 50 °C

IP Rating

IP65

Communication & Control

Serial Ports

Safety, Standards & Compliance

Compliance Standards

CE, EN 61326-1, CISPR 11 Class A, EN 61010-1, RoHS, UKCA, UL E179259

PXU-PID CONTROLLER,1/16 DIN UNI. IN,24 VDC POWER IN RELAY OUTPUT,IP65 REDLION

Product Code: PXU100B0
