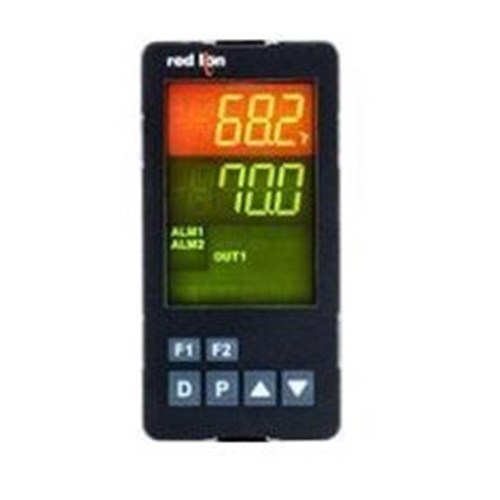

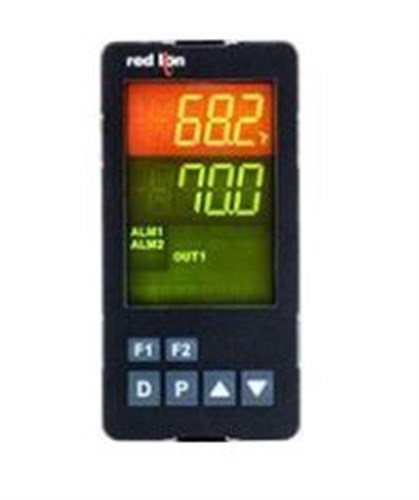

PXU-PID CONTROLLER,1/8 DIN UNI. IN,100 TO 240VAC PWR IN RELAY OUTPUT,IP65 REDLION

Product Code: PXU10030

  • Versatile PID Controller in PxU series
  • 100-240 VAC rated voltage for flexibility
  • LED display with 2-line, 4-digit backlight
  • IP65 protection ensures durability
  • Complies with CE, RoHS, and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pid Controller
Brand
Red Lion
Series
PXU

Electrical

Analog Resolution
16 bit input
Channel Isolation
AC power to all other I/O: 250 V working (2300 V for 1 min); Relay contacts to all other I/O: 250 V working (2300 V for 1 min)
Digital Inputs
0
Output Ratings
Control relay: 5 A at 250 V AC or 30 V DC; Alarm relay: 3 A at 250 V AC or 30 V DC
Input Ratings
0 to 5 V DC, 0 to 10 V DC, 0 to 20 mA DC, 4 to 20 mA DC, 0 to 50 mV DC
Input Type
Thermocouple, RTD, DC voltage, DC current, millivolt
Output Type
Relay
Power Consumption
5 VA
Supply Voltage
100V to 240V AC
Terminal Type
Wire-clamping screw terminals

Mechanical

Housing Material
Black plastic alloy

Dimensions & Physical Data

Depth
71.5mm
Height
95.8mm
Width
48mm

Environmental

Storage Temperature
-20°C to 65°C
Operating Temperature
0°C to 50°C
IP Rating
IP65

Communication & Control

Serial Ports
0

Safety, Standards & Compliance

Certifications / Approvals
CE, EN 61326-1, CISPR 11 Class A, EN 61010-1, RoHS, UKCA, UL E179259
