Product Code: PXU10020

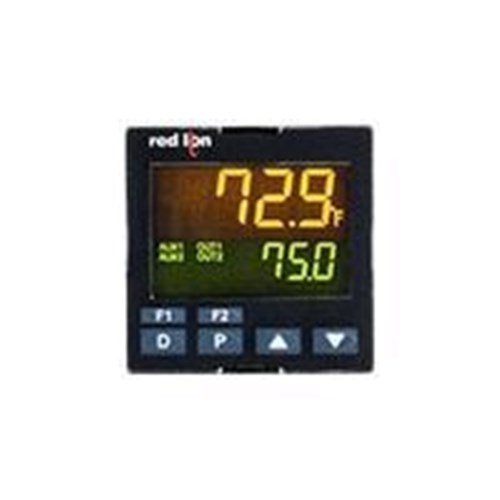

Versatile PxU series PID controller
Operates on 100-240 VAC
Robust IP65 protection rating
Suitable for 0 to 50°C environments
Compliant with CE, UL, RoHS standards

Specifications

General

Product Type

PID Controller

Brand

Red Lion

Series

PXU

Electrical

Analog Resolution 16 bit input	Channel Isolation AC power to all other I/O: 250 V working (2300 V for 1 min); Relay contacts to all other I/O: 250 V working (2300 V for 1 min)	Digital Inputs 0
Output Ratings Control relay: 5 A at 250 V AC or 30 V DC; Alarm relay: 3 A at 250 V AC or 30 V DC	Input Ratings 0 to 5 V DC, 0 to 10 V DC, 0 to 20 mA DC, 4 to 20 mA DC, 0 to 50 mV DC	Input Type Thermocouple, RTD, DC voltage, DC current, millivolt
Output Type Relay	Power Consumption 5 VA	Supply Voltage 100 to 240 V AC
Terminal Type Wire-clamping screw terminals

Mechanical

Housing Material

Black plastic alloy

Mounting Method

Panel mount

Dimensions & Physical Data

Depth

79.7 mm

Height

48 mm

Width

48 mm

Environmental

Storage Temperature

-20 to 65 °C

Operating Temperature

0 to 50 °C

IP Rating

IP65

Communication & Control

Serial Ports

Safety, Standards & Compliance

Compliance Standards

CE, EN 61326-1, CISPR 11 Class A, EN 61010-1, RoHS, UKCA, UL E179259

PXU-PID CONTROLLER,1/16 DIN UNI. IN,100 TO 240VAC PWR IN RELAY OUTPUT,IP65 REDLION

Product Code: PXU10020
