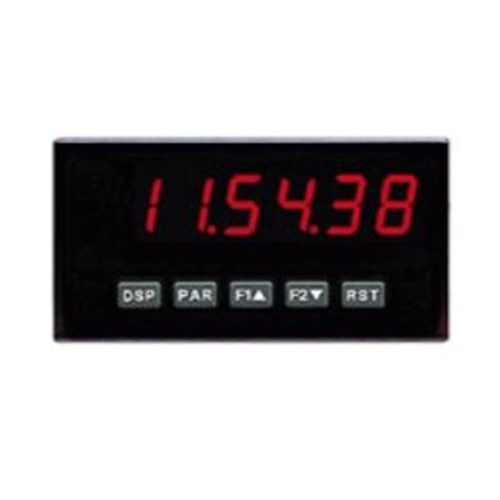

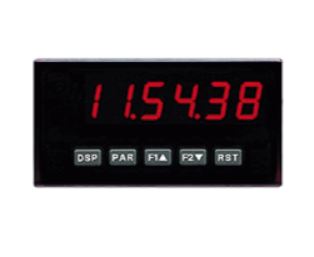

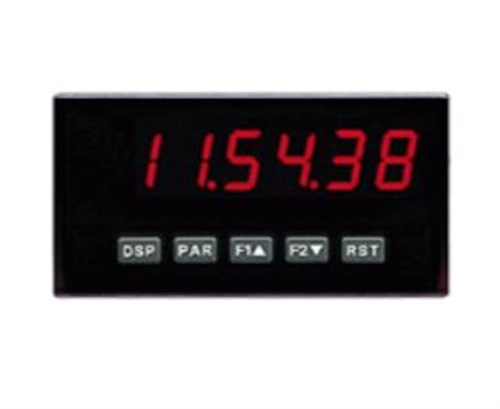

Product Code: PAXTM010

Operates at 11-36 VDC, 24 VAC
6-digit LED backlit display
Compact 0.56-inch display size
Complies with RoHS and UL standards

Specifications

General

Product Type

Timer / Counter

Brand

Red Lion

Series

PAX

Electrical

Channel Isolation 500 V AC	Digital Inputs 3	Digital Outputs 0
Analog Outputs 0	Input Type Sink/source logic, switch contact	Power Consumption 14 W at 11 to 36 V DC, 15 VA at 24 V AC
Supply Voltage 11 to 36 V DC, 24 V AC	Terminal Type High-compression cage-clamp	Analog Inputs 0

Mechanical

Housing Material

Polycarbonate

Mounting Method

Panel mount

Dimensions & Physical Data

Depth

104.1 mm

Height

49.5 mm

Width

96.5 mm

Environmental

Storage Temperature

-40 to 60 °C

Operating Temperature

0 to 50 °C

IP Rating

IP65

Communication & Control

Ethernet Ports 0	Expandable Communications Yes	Fieldbus Interface DeviceNet, PROFIBUS-DP
Serial Ports 0	USB Port 0	Supported Serial Protocols RLC Protocol (ASCII), Modbus RTU, Modbus ASCII

Safety, Standards & Compliance

Compliance Standards

CE, EN 61326-1, EN 61010-1, EN 61010-2-030, RoHS, UKCA, UL E179259

Accessories & Additional Information

Development Software

Crimson

PAX TIMER,DC PWR,1/8 DIN 6 DIGIT,0.56" RED LED DISPLAY 11-36VDC IN POWER REDLION
