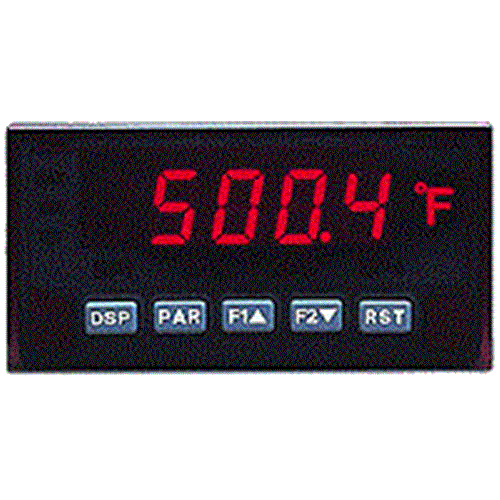

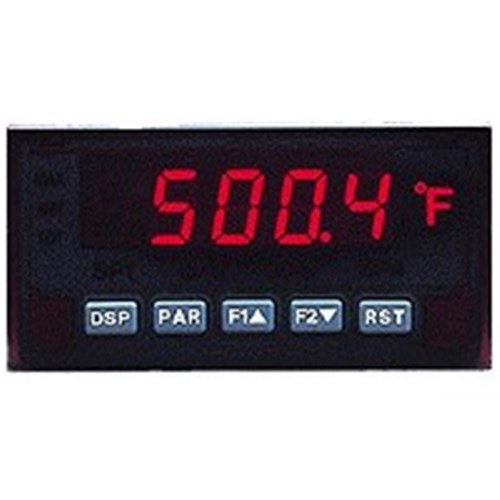

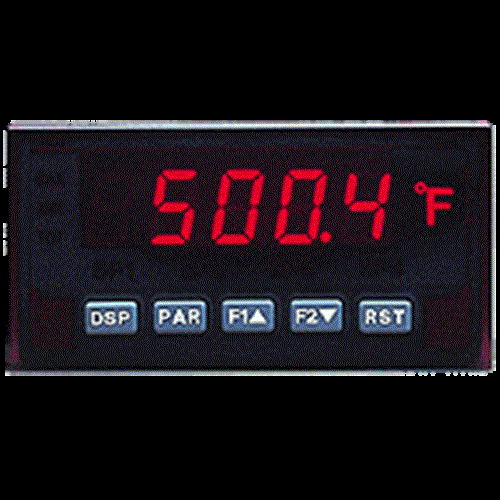

Product Code: PAXT0000

Suitable for 85-250 VAC applications
Clear LED display with 0.56 in size
IP65 rating for dust and water resistance
Complies with RoHS and UL standards

Specifications

General

Product Type

Temperature Meter

Brand

Red Lion

Series

PAX

Electrical

Analog Resolution 16 bit	Channel Isolation 2300 V AC	Digital Inputs 3
Digital Outputs 0	Analog Outputs 0	Input Ratings Thermocouple T, E, J, K, R, S, B, N, C, 100 O Pt RTD, 120 O Ni RTD
Input Type Thermocouple, RTD	Power Consumption 15 VA	Supply Voltage 85 to 250 V AC
Terminal Type High-compression cage-clamp	Analog Inputs 1

Mechanical

Housing Material

Polycarbonate

Mounting Method

Panel mount

Dimensions & Physical Data

Depth

104.1 mm

Height

49.5 mm

Width

96.5 mm

Environmental

Storage Temperature

-40 to 60 °C

Operating Temperature

0 to 50 °C

IP Rating

IP65

Communication & Control

Ethernet Ports 0	Expandable Communications Yes	Fieldbus Interface DeviceNet, PROFIBUS-DP
Serial Ports 0	USB Port 0	Supported Serial Protocols RLC Protocol (ASCII), Modbus RTU, Modbus ASCII

Safety, Standards & Compliance

Compliance Standards

CE, EN 61326-1, EN 61010-1, EN 61010-2-030, RoHS, UKCA, UL E179259

Accessories & Additional Information

Development Software

Crimson

PAX TEMPERATURE METER,AC PWR 5 DIGIT,0.56" RED LED DISPLAY 85-250VAC IN POWER REDLION
