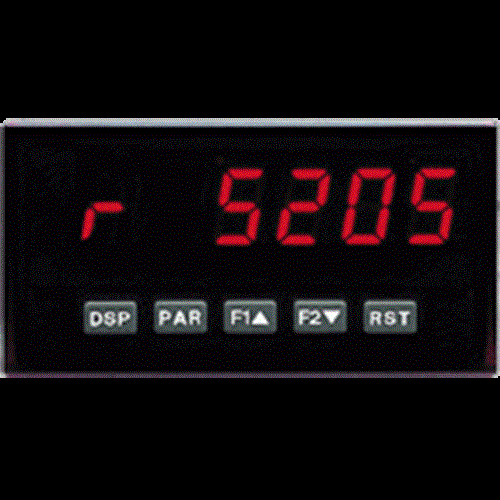

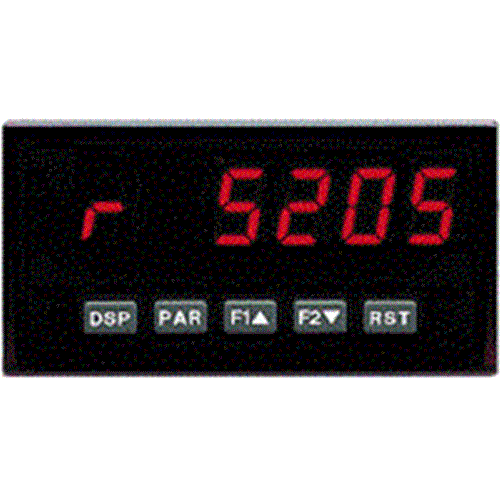

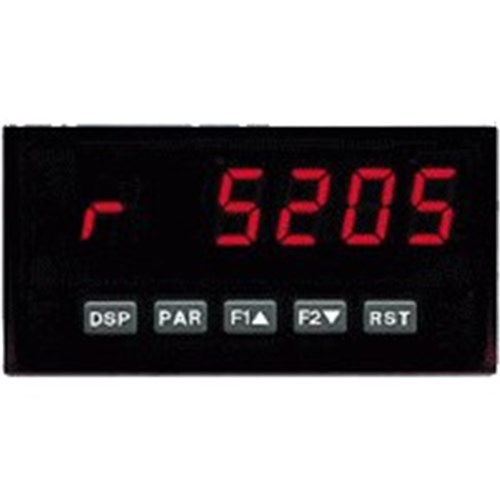

Product Code: PAXR0030

Compact LED display with 0.56 in size
Operates on 11-36 VDC power supply
IP65 protection against dust and water
Withstands vibration from 5 to 150 Hz
Meets CSA and UL safety standards

Specifications

General

Product Type

Rate Meter

Brand

Red Lion

Series

PAX

Electrical

Channel Isolation 500 V AC	Digital Inputs 1	Digital Outputs 0
Analog Outputs 0	Input Ratings 30 V DC max, 34 kHz max	Input Type Switch contact, TTL, magnetic pickup, RLC sensor, NPN open collector
Power Consumption 14 W at 11 to 36 V DC, 15 VA at 24 V AC	Supply Voltage 11 to 36 V DC, 24 V AC	Terminal Type High-compression cage-clamp
Analog Inputs 0

Mechanical

Housing Material

Polycarbonate

Dimensions & Physical Data

Depth

104.1mm

Height

49.5mm

Width

96.5mm

Environmental

Storage Temperature

-40°C to 60°C

Operating Temperature

0°C to 50°C

IP Rating

IP65

Communication & Control

Ethernet Ports 0	Expandable Communications Yes	Fieldbus Interface PROFIBUS-DP
Serial Ports 0	USB Port 0	Supported Serial Protocols RLC Protocol (ASCII), Modbus RTU, Modbus ASCII

Safety, Standards & Compliance

Certifications / Approvals

CE, EN 61326-1, EN 61010-1, EN 61010-2-030, RoHS, UKCA, UL E179259

Accessories & Additional Information

Development Software

Crimson

PAX RATE METER,DC PWR,1/8 DIN 5 DIGIT,0.56" RED LED DISPLAY 11-36VDC IN POWER REDLION
