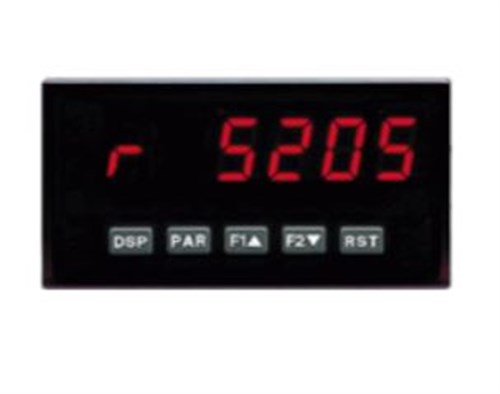

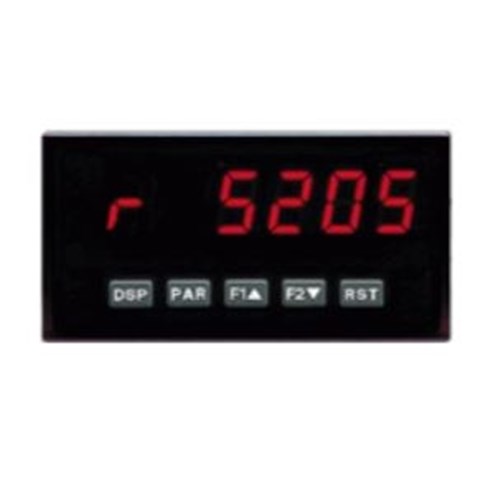

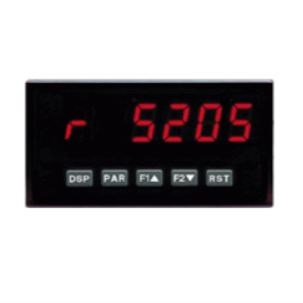

Product Code: PAXR0020

Suitable for 30 VDC applications
Clear 6-digit LED backlit display
Compact size: 97 mm x 50 mm
Withstands vibration: 5-150 Hz
Meets CSA and UL standards

Specifications

General

Product Type

Rate Meter

Brand

Red Lion

Series

PAX

Electrical

Channel Isolation 2300 V AC	Digital Inputs 1	Digital Outputs 0
Analog Outputs 0	Input Ratings 30 V DC max, 34 kHz max	Input Type Switch contact, TTL, magnetic pickup, RLC sensor, NPN open collector
Power Consumption 18 VA	Supply Voltage 85V to 250V AC	Terminal Type High-compression cage-clamp
Analog Inputs 0

Mechanical

Housing Material

Polycarbonate

Dimensions & Physical Data

Depth

104.1mm

Height

49.5mm

Width

96.5mm

Environmental

Storage Temperature

-40°C to 60°C

Operating Temperature

0°C to 50°C

IP Rating

IP65

Communication & Control

Ethernet Ports 0	Expandable Communications Yes	Fieldbus Interface PROFIBUS-DP
Serial Ports 0	USB Port 0	Supported Serial Protocols RLC Protocol (ASCII), Modbus RTU, Modbus ASCII

Safety, Standards & Compliance

Certifications / Approvals

CE, EN 61326-1, EN 61010-1, EN 61010-2-030, RoHS, UKCA, UL E179259

Accessories & Additional Information

Development Software

Crimson

PAX RATE METER,AC PWR,1/8 DIN 5 DIGIT,0.56" RED LED DISPLAY 85-250VAC IN POWER REDLION
