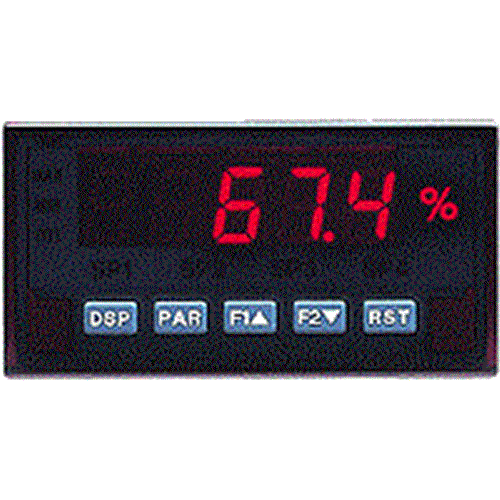

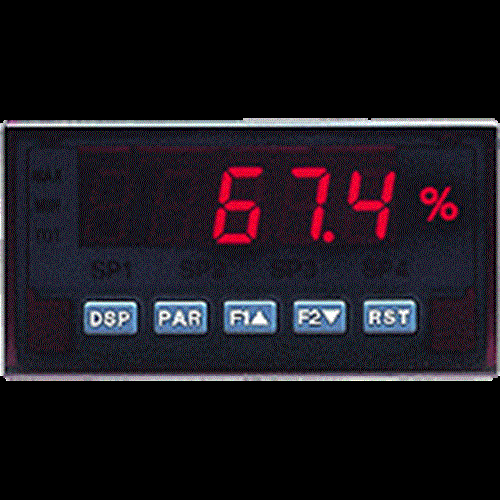

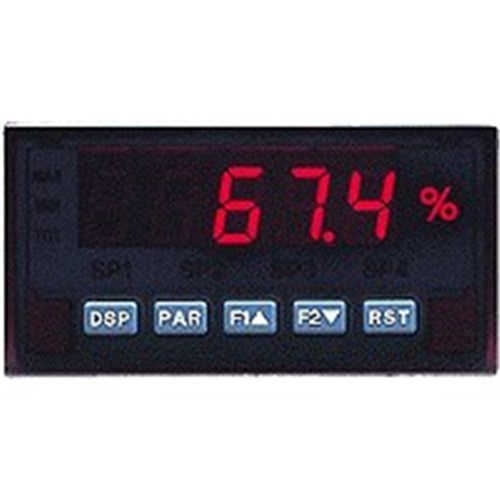

Red Lion PAXP0000 Process Input Meter 85-250VAC LED Display

Product Code: PAXP0000

  • Suitable for 85-250 VAC systems
  • Clear LED display with 0.56 in size
  • IP65 protection against dust and water
  • Vibration resistant from 5-150 Hz
  • Complies with CSA and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Panel Meter
Brand
Red Lion
Series
PAX

Electrical

Input Ratings
20 mA/ 10 VDC
Input Type
Current/ Voltage
Supply Voltage
85 to 250 VAC
Terminal Type
Screw Terminals

Mechanical

Housing Material
Polycarbonate
Mounting Method
Panel mount
Display Colour/Type
Red
Display Lines
1

Dimensions & Physical Data

Depth
203.2 mm
Height
101.6 mm
Width
152.4 mm
Display Size
0.56" (14.2 mm)

Environmental

Storage Temperature
-40 °C -60 °C
Operating Temperature
0 °C -50 °C
IP Rating
IP65

Safety, Standards & Compliance

Compliance Standards
IEC 68-2-27: Operational 25 g (10 g relay); IEC 68-2-6: Operational 5 to 150 Hz, 2 g/ UKCA/ UL/ CE
Hazardous Location Ratings
RoHs, EN 61326-1,
