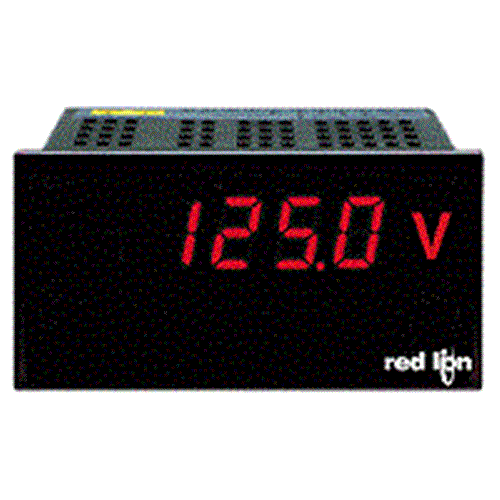

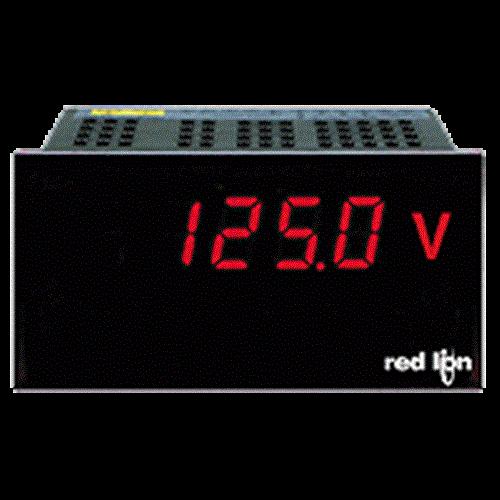

Product Code: PAXLVD00

Measures up to +/-300 VDC
Red LED display with 3 digits
Panel mount design for easy installation
IP20/IP65 protection rating
Complies with CE, RoHS, and UL standards

Specifications

General

Product Type

DC Voltage Meter

Brand

Red Lion

Series

PAX Lite

Electrical

Analog Resolution 16 bit	Digital Inputs 0	Digital Outputs 0
Analog Outputs 0	Input Ratings ±199.9 mV DC, ±1.999 V DC, ±19.99 V DC, ±300 V DC	Input Type DC voltage
Power Consumption 6 VA	Supply Voltage 115 V AC, 230 V AC	Terminal Type Screw terminal
Analog Inputs 1

Mechanical

Housing Material

Plastic

Mounting Method

Panel mount

Dimensions & Physical Data

Depth

104.1 mm

Height

49.5 mm

Width

96.5 mm

Environmental

Storage Temperature

-40 to 80 °C

Operating Temperature

0 to 60 °C

IP Rating

IP65

Communication & Control

Ethernet Ports 0	Expandable Communications No	Serial Ports 0
USB Port 0

Safety, Standards & Compliance

Compliance Standards

UL E137808

PAX LITE DC VOLT METER 3 1/2DIGIT,0.56"LED W/POLARITY 1/8 DIN,NEMA 4X/IP65 REDLION

Product Code: PAXLVD00
