Specifications

General

Product Type

Temperature Meter

Brand

Red Lion

Series

PAXLT

Electrical

Input Ratings Thermocouple: (T, E, J, K, R, S, B, N, C, mV)Resistance: 100 ohm, 120 ohm, 10 ohmSoftware Selectable: Active logic state: active low, pull-up (24.7 K? to +5VDC) or active high, pull-down resistor (20 K?).Trigger levels: VIL = 1.0 V max; VIH = 2.4 V min; VMAX = 28 VDCResponse Time: 10 msec typ.; 50 msec debounce (activation and release)	Input Type Resistance/ Thermocouple/ Software Selectable	Power Consumption 12 VA
Supply Voltage 50 to 250 VAC	Terminal Type Screw Terminals

Mechanical

Housing Material Polycarbonate	Mounting Method Panel mount	Display Colour/Type Red
Display Lines 1

Dimensions & Physical Data

Depth 104.1 mm	Height 44.5 mm	Width 91.4 mm
Panel Cut-Out Size 45 mm H x 92 mm W	Display Size 0.56" (14.2 mm)

Environmental

Storage Temperature

-40 to 70 °C

Operating Temperature

0 to 50 °C

IP Rating

IP65

Safety, Standards & Compliance

Hazardous Location Ratings

CE Approved EN 61326-1 Immunity to Industrial Locations Emission CISPR 11 Class A IEC/EN 61010-1 RoHS CompliantType 4X Outdoor Enclosure rating (Face only)

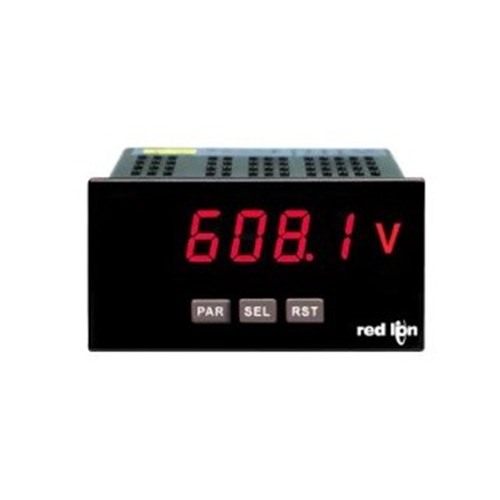

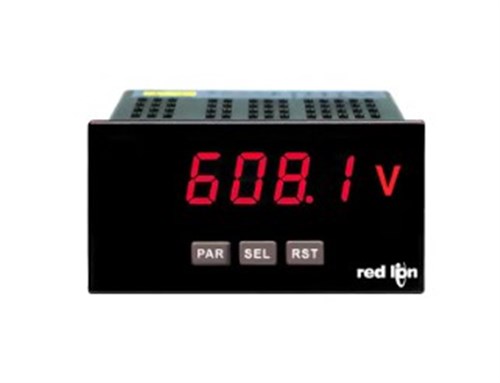

Red Lion PAXLT000 Strain Gage Input Temperature Meter Panel Mount

Product Code: PAXLT000
