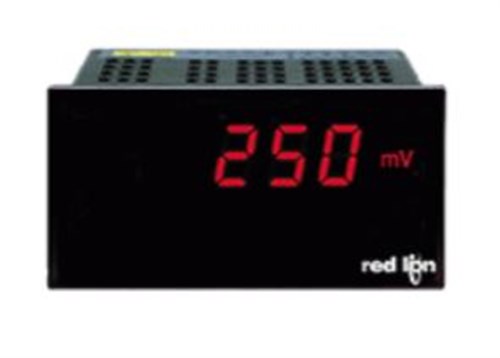

Product Code: PAXLSG00

Suitable for 85-250 VAC systems
Features a 4-digit display
Red LED backlight for clear visibility
Compact 0.56-inch display size
IP65 protection against dust and water

Specifications

General

Product Type

Strain Gage / Millivolt Meter

Brand

Red Lion

Series

PAX Lite

Electrical

Channel Isolation 2300 V AC	Digital Inputs 0	Digital Outputs 0
Output Ratings 5 V DC or 10 V DC	Analog Outputs 0	Input Ratings 10 mV full scale, ±2 V DC max
Input Type Strain gage, millivolt	Output Type Excitation supply	Power Consumption 6 VA
Supply Voltage 85 to 250 V AC	Terminal Type Screw terminal	Analog Inputs 1

Mechanical

Housing Material

Plastic

Mounting Method

Panel mount

Dimensions & Physical Data

Depth

104.1 mm

Height

49.5 mm

Width

96.5 mm

Environmental

Storage Temperature

-40 to 80 °C

Operating Temperature

0 to 60 °C

IP Rating

IP65

Communication & Control

Ethernet Ports 0	Expandable Communications No	Serial Ports 0
USB Port 0

Safety, Standards & Compliance

Compliance Standards

UL E137808

PAX LITE STRAIN GAGE METER MILLIVOLT METER,5 DIGIT,0.56" LED,NEMA 4X/IP65 REDLION

Product Code: PAXLSG00
