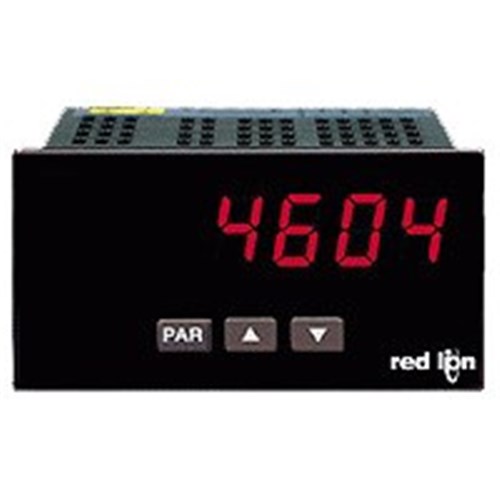

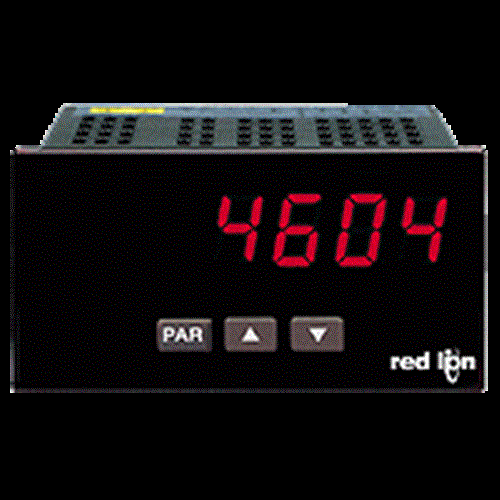

Product Code: PAXLR000

Suitable for 115-230 VAC systems
Red LED display with 6 digits
Compact size: 97x50x104 mm
IP65 rated for dust and water protection
Operates from 0 to 60°C

Specifications

General

Product Type

Rate Meter

Brand

Red Lion

Series

PAX Lite

Electrical

Digital Inputs 1	Digital Outputs 0	Analog Outputs 0
Input Ratings 25 kHz max	Input Type Magnetic pickup, logic, NPN open collector	Power Consumption 6 VA
Supply Voltage 115 V AC, 230 V AC, 10 to 16 V DC	Terminal Type Screw terminal	Analog Inputs 0

Mechanical

Housing Material

Plastic

Mounting Method

Panel mount

Dimensions & Physical Data

Depth

104.1 mm

Height

49.5 mm

Width

96.5 mm

Environmental

Storage Temperature

-40 to 60 °C

Operating Temperature

0 to 60 °C

IP Rating

IP65

Communication & Control

Ethernet Ports 0	Expandable Communications No	Serial Ports 0
USB Port 0

Safety, Standards & Compliance

Compliance Standards

UL E137808

PAX LITE 6 DIGIT RATE METER RATE INDICATION,6 DIGIT,0.56" RED LED DISPLAY, REDLION

Product Code: PAXLR000
