Product Code: PAXLID00

Suitable for 115-230 VAC systems
Compact LED display at 0.56 inches
IP65 rated for dust and water protection
Operates efficiently from 0 to 60°C

Specifications

General

Product Type

DC Current Meter

Brand

Red Lion

Series

PAX Lite

Electrical

Analog Resolution 16 bit	Digital Inputs 0	Digital Outputs 0
Analog Outputs 0	Input Ratings ±199.9 µA DC, ±1.999 mA DC, ±19.99 mA DC, ±199.9 mA DC, ±1.999 A DC	Input Type DC current
Power Consumption 6 VA	Supply Voltage 115 V AC, 230 V AC	Terminal Type Screw terminal
Analog Inputs 1

Mechanical

Housing Material

Plastic

Mounting Method

Panel mount

Dimensions & Physical Data

Depth

104.1 mm

Height

49.5 mm

Width

96.5 mm

Environmental

Storage Temperature

-40 to 80 °C

Operating Temperature

0 to 60 °C

IP Rating

IP65

Communication & Control

Ethernet Ports 0	Expandable Communications No	Serial Ports 0
USB Port 0

Safety, Standards & Compliance

Compliance Standards

UL E137808

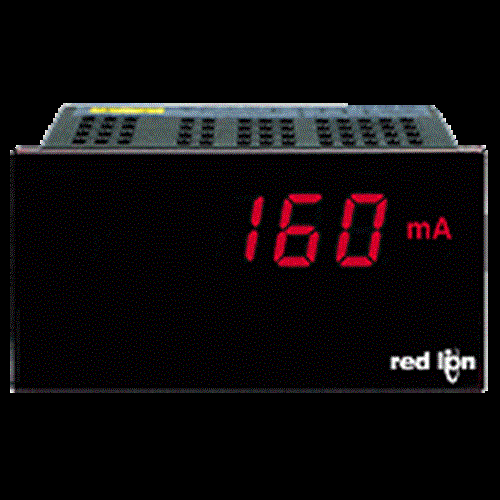

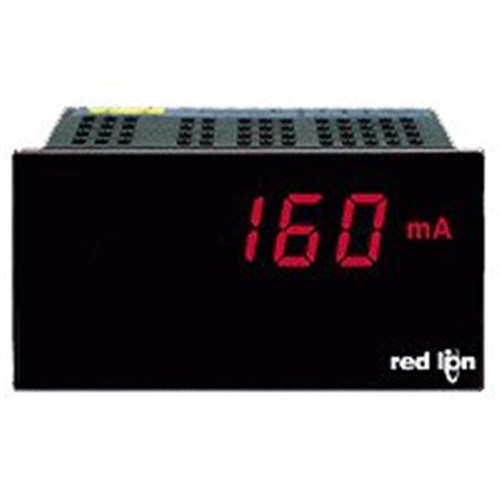

PAX LITE DC CURRENT METER 3 1/2DIGIT,0.56"LED W/POLARITY 1/8 DIN,NEMA 4X/IP65 REDLION

Product Code: PAXLID00
