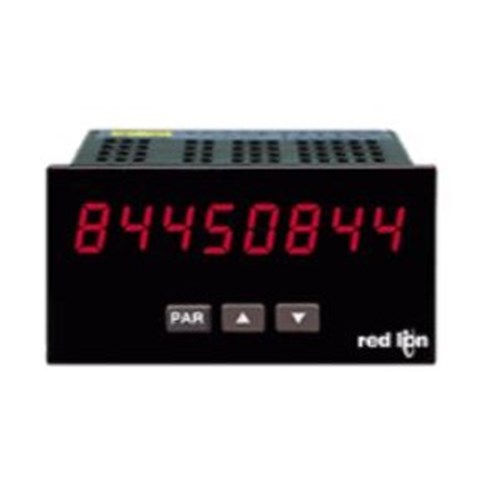

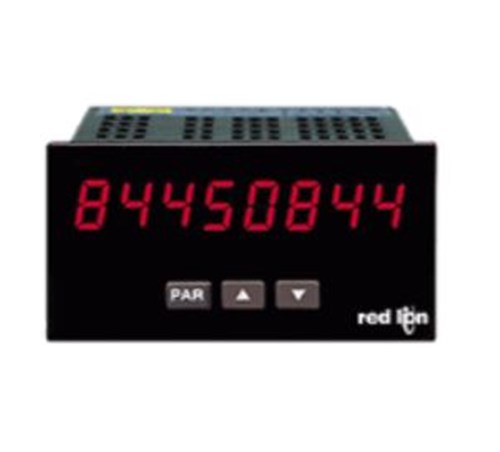

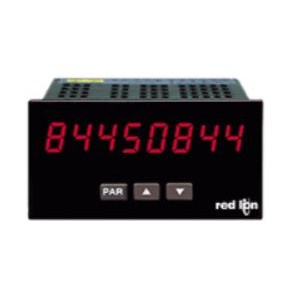

PAX LITE EIGHT DIGIT COUNTER 8 DIGIT,0.4"RED LED DISPLAY 1/8 DIN,NEMA 4X/IP65 REDLION

Product Code: PAXLC800

  • 8-digit display with red LED backlight
  • Compact size: 96.5mm x 49.5mm x 104.1mm
  • Operates at 30 VDC
  • Vibration resistant: 5-150 Hz
  • CE, cULus E179259, EN 61010-1, RoHS approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
8 - Digit Totalizing Counter
Brand
Red Lion
Series
PAX Lite

Electrical

Digital Inputs
2
Digital Outputs
0
Analog Outputs
0
Input Ratings
25 kHz max
Input Type
Switch contact, NPN open collector, TTL
Supply Voltage
85V to 250V AC
Terminal Type
Screw terminal
Analog Inputs
0

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
104.1mm
Height
49.5mm
Width
96.5mm

Environmental

Storage Temperature
-40°C to 60°C
Operating Temperature
0°C to 50°C
IP Rating
IP65

Communication & Control

Ethernet Ports
0
Expandable Communications
No
Serial Ports
0
USB Port
0

Documents

IPD Product Catalogue V17
