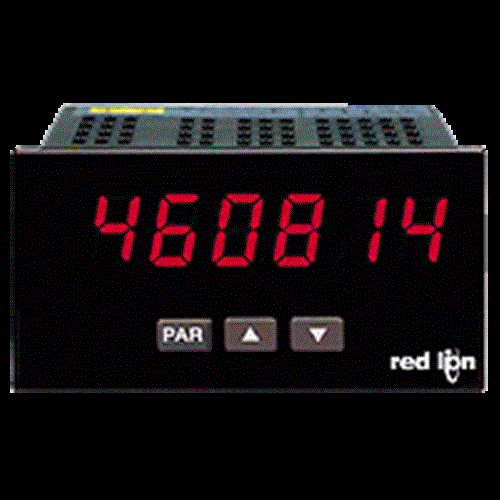

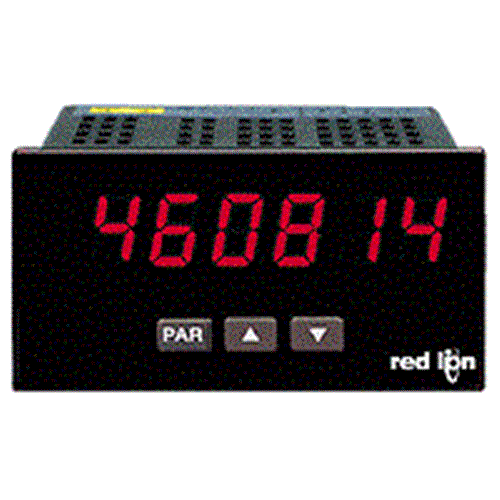

PAX LITE SIX DIGIT COUNTER 6 DIGIT,0.56"RED LED DISPLAY 1/8 DIN,NEMA 4X/IP65 REDLION

Product Code: PAXLC600

  • Operates on 115-230 VAC
  • LED display with 0.56 in size
  • Compact dimensions: 96.5 x 49.5 x 104.1 mm
  • IP65 protection against dust and water
  • CE, cULus, EN 61010-1 certified
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
6-Digit Totalizing Counter
Brand
Red Lion
Series
PAX Lite

Electrical

Digital Inputs
2
Digital Outputs
0
Analog Outputs
0
Input Ratings
25 kHz max
Input Type
Switch contact, NPN open collector, TTL
Supply Voltage
85 to 250 V AC
Terminal Type
Screw terminal
Analog Inputs
0

Mechanical

Housing Material
Plastic
Mounting Method
Panel mount

Dimensions & Physical Data

Depth
104.1 mm
Height
49.5 mm
Width
96.5 mm

Environmental

Storage Temperature
-40 to 60 °C
Operating Temperature
0 to 50 °C
IP Rating
IP65

Communication & Control

Ethernet Ports
0
Expandable Communications
No
Serial Ports
0
USB Port
0
