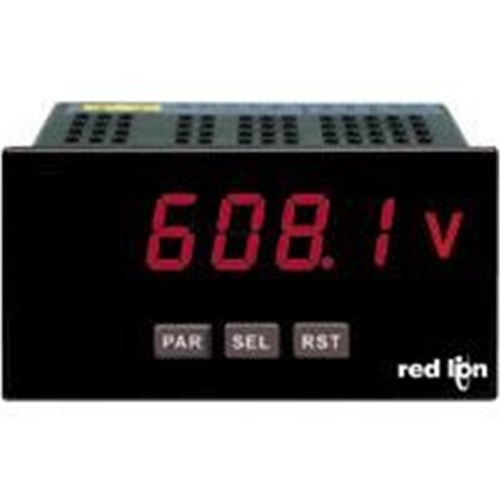

PAXL UNIV. DC IN METER,DUAL RELAY OUT,5 DIGIT, 0.56" RED LED DISPLAY,UL LISTED REDLION

Product Code: PAXLA0U0

  • Suitable for 50-250 VAC applications
  • Energy efficient with 12 VA power rating
  • LED display with 0.56 in size
  • Reliable IP65 protection rating
  • Complies with CE, cULus, RoHS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC Voltage / Current / Process Meter
Brand
Red Lion
Series
PAX Lite

Electrical

Digital Inputs
0
Digital Outputs
2
Output Ratings
0.208333333
Analog Outputs
0
Input Ratings
200 V DC max, 200 mA DC max, 4 to 20 mA, 0 to 10 V DC
Input Type
DC voltage, DC current, process current, process voltage
Output Type
Form C relay
Power Consumption
12 VA AC, 6W DC
Supply Voltage
50 to 250 V AC, 21.6 to 250 V DC
Analog Inputs
1

Mechanical

Housing Material
Plastic

Dimensions & Physical Data

Depth
104.1mm
Height
49.5mm
Width
96.5mm

Environmental

Storage Temperature
-40°C to 70°C
Operating Temperature
0°C to 50°C
IP Rating
IP65

Communication & Control

Ethernet Ports
0
Expandable Communications
No
Serial Ports
0
USB Port
0

Safety, Standards & Compliance

Certifications / Approvals
UL E179259
