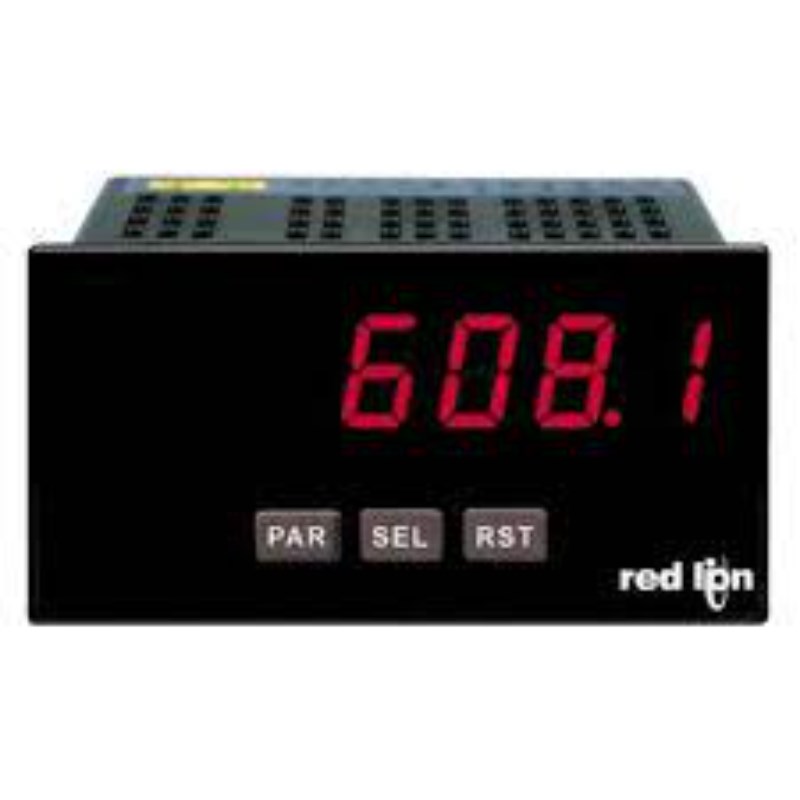

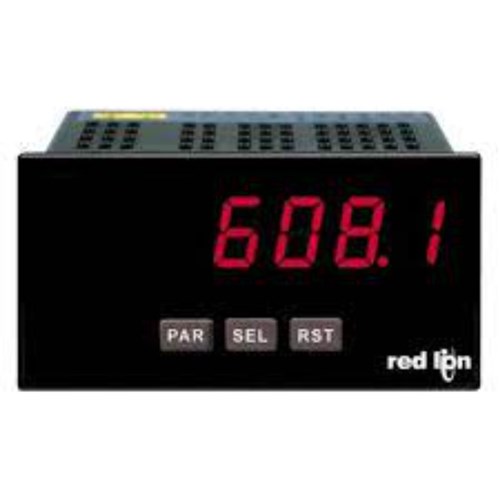

PAX VOLT/CURRENT/PROCESS METER W/ DUAL RELAY OUT,5 DIGIT 0.56" RED LED,4X/IP65 REDLION

Product Code: PAXLA000

  • Compact 0.56 in display for easy reading
  • Wide voltage range: 21.6-250 VDC
  • Secure cage clamp connections
  • IP65 protection against dust and water
  • CE, cULus, EN 61010-1, RoHS compliant
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC Voltage / Current / Process Meter
Brand
Red Lion
Series
PAX Lite

Electrical

Digital Inputs
0
Digital Outputs
2
Output Ratings
0.2083333333
Analog Outputs
0
Input Ratings
200 V DC max, 200 mA DC max, 4 to 20 mA, 0 to 10 V DC
Input Type
DC voltage, DC current, process current, process voltage
Output Type
Form C relay
Power Consumption
12 VA AC, 6 W DC
Supply Voltage
50 to 250 V AC, 21.6 to 250 V DC
Analog Inputs
1

Mechanical

Housing Material
Plastic
Mounting Method
Panel mount

Dimensions & Physical Data

Depth
104.1 mm
Height
49.5 mm
Width
96.5 mm

Environmental

Storage Temperature
-40 to 70 °C
Operating Temperature
0 to 50 °C
IP Rating
IP65

Communication & Control

Ethernet Ports
0
Expandable Communications
No
Serial Ports
0
USB Port
0
