Specifications

Product Type

Panel Meter

Brand

Red Lion

Series

PAX

Input Ratings LOGIC: Input trigger levels VIL = 1.5 V max.; VIH = 3.75 V min.Current sinking: Internal 7.8 K? pull-up to +12 VDC, IMAX = 1.9 mA.Current sourcing: Internal 3.9 K? pull-down, 7.3 mA max. @ 28 VDC,VMAX = 30 VDC.Filter: Damping capacitor provided for switch contact bounce. Limitsinput frequency to 50 Hz and input pulse widths to 10 msec. minimum.MAGNETIC PICKUP:Sensitivity: 200 mV peakHysteresis: 100 mVInput impedance: 3.9 K? @ 60 HzMaximum input voltage: ±40 V peak, 30 Vrms	Input Type Voltage	Power Consumption 14 W
Supply Voltage 11 to 36 VDC	Terminal Type Screw Terminals

Housing Material Polycarbonate	Mounting Method Panel mount	Display Colour/Type Red
Display Lines 1

Depth 203.2 mm	Height 101.6 mm	Width 152.4 mm
Display Size 0.56" (14.2 mm)

Storage Temperature

-40 °C -60 °C

Operating Temperature

0 °C -50 °C

IP Rating

IP65

Compliance Standards

IEC 68-2-27: Operational 25 g (10 g relay); IEC 68-2-6: Operational 5 to 150 Hz, 2 g/ UKCA/ UL/ CE

Hazardous Location Ratings

RoHs, EN 61326-1,

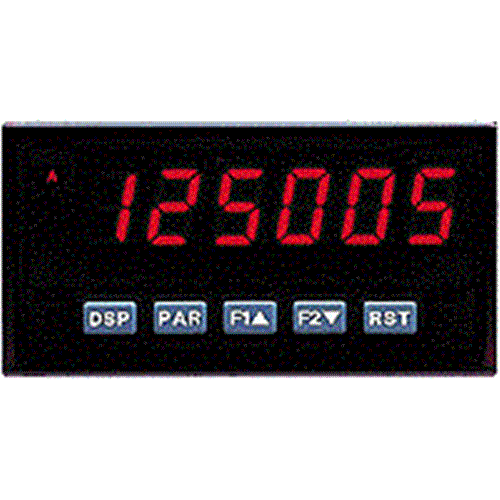

Red Lion PAXI0030 Dual Counter/Rate Meter 11-36VDC 5 Digit Red Backlight, LED Display
