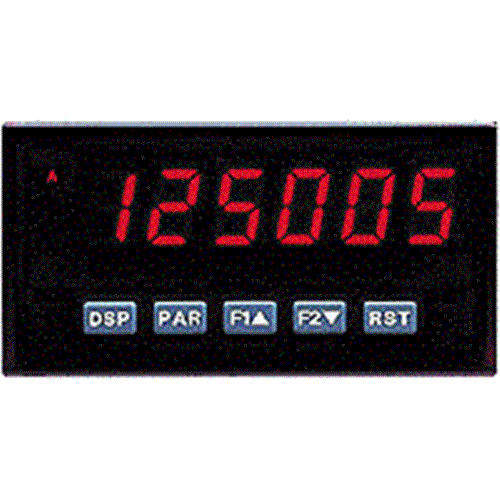

Product Code: PAXI0020

Measures 34 KHz with various inputs
Operates on 85-250 VAC
Red LED display with 5 digits
Panel mount design, compact size
IP20/IP65 protection ratings

Specifications

General

Product Type

Dual Counter / Rate Meter

Brand

Red Lion

Series

PAX

Electrical

Channel Isolation 2300 V AC	Digital Inputs 2	Digital Outputs 1
Output Ratings 100 mA max at 1 V DC max, 30 V DC max	Analog Outputs 0	Input Ratings 30 V DC max, 34 kHz max
Input Type Switch contact, TTL, magnetic pickup, RLC sensor, NPN open collector	Output Type NPN open collector	Power Consumption 18 VA
Supply Voltage 85V to 250V AC	Terminal Type High-compression cage-clamp	Analog Inputs 0

Mechanical

Housing Material

Polycarbonate

Dimensions & Physical Data

Depth

104.1mm

Height

49.5mm

Width

96.5mm

Environmental

Storage Temperature

-40°C to 60°C

Operating Temperature

0°C to 50°C

IP Rating

IP65

Communication & Control

Ethernet Ports 0	Expandable Communications Yes	Fieldbus Interface DeviceNet, PROFIBUS-DP
Serial Ports 0	USB Port 0	Supported Serial Protocols RLC Protocol (ASCII), Modbus RTU, Modbus ASCII

Safety, Standards & Compliance

Certifications / Approvals

CE, EN 61326-1, EN 61010-1, EN 61010-2-030, RoHS, UKCA, UL E179259

Accessories & Additional Information

Development Software

Crimson

PAX DUAL COUNTER/RATE METER,AC 1/8 DIN,6 DIGIT 0.56" RED LED DISPLAY,NEMA 4X/IP65 REDLION
