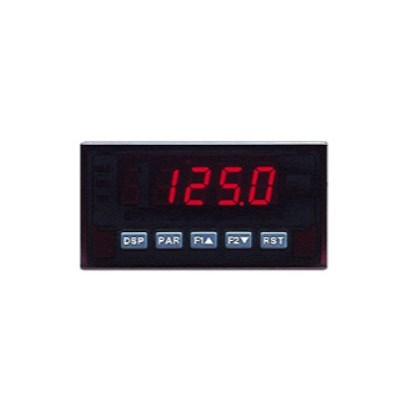

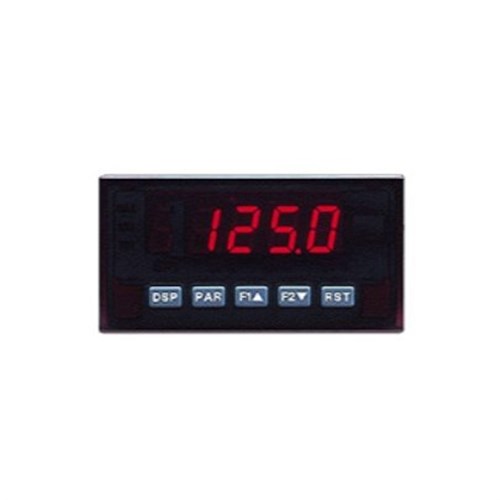

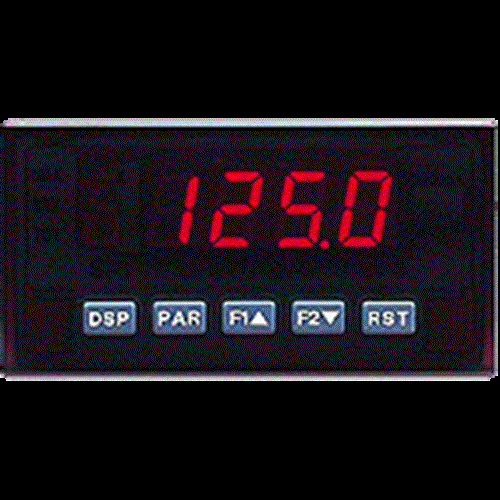

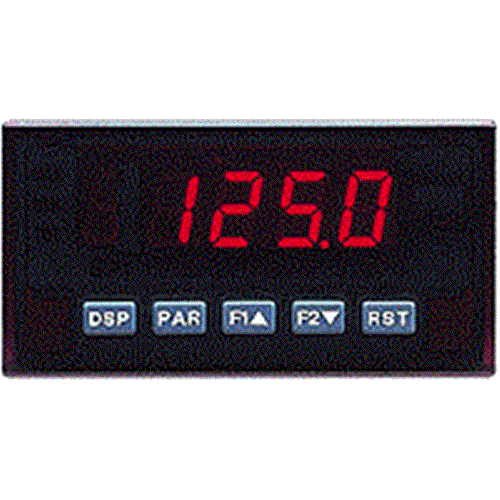

Product Code: PAXH0000

Compatible with 85-250 VAC systems
Energy efficient with 15 VA power rating
Clear 0.56" LED display for easy reading
Durable IP65 protection against dust and water
Operates in temperatures from 0 to 50°C

Specifications

General

Product Type

AC True RMS Voltage / Current Meter

Brand

Red Lion

Series

PAX

Electrical

Analog Resolution 16 bit	Channel Isolation 2300 V AC	Digital Inputs 3
Digital Outputs 0	Analog Outputs 0	Input Ratings 200 mV AC, 2 V AC, 20 V AC, 300 V AC, 200 µA AC, 2 mA AC, 20 mA AC, 200 mA AC, 5 A AC
Input Type True RMS AC voltage, True RMS AC current	Power Consumption 15 VA	Supply Voltage 85 to 250 V AC
Terminal Type High-compression cage-clamp	Analog Inputs 1

Mechanical

Housing Material

Polycarbonate

Mounting Method

Panel mount

Dimensions & Physical Data

Depth

104.1 mm

Height

49.5 mm

Width

96.5 mm

Environmental

Storage Temperature

-40 to 60 °C

Operating Temperature

0 to 50 °C

IP Rating

IP65

Communication & Control

Ethernet Ports 0	Expandable Communications Yes	Fieldbus Interface DeviceNet, PROFIBUS-DP
Serial Ports 0	USB Port 0	Supported Serial Protocols RLC Protocol (ASCII), Modbus RTU, Modbus ASCII

Safety, Standards & Compliance

Compliance Standards

CE, EN 61326-1, EN 61010-1, EN 61010-2-030, RoHS, UKCA, UL E179259

Accessories & Additional Information

Development Software

Crimson

AC VOLTAGE & CURRENT METER,AC 1/8 DIN,5 DIGIT 0.56" RED LED DISPLAY,85-250 VAC IN REDLION
