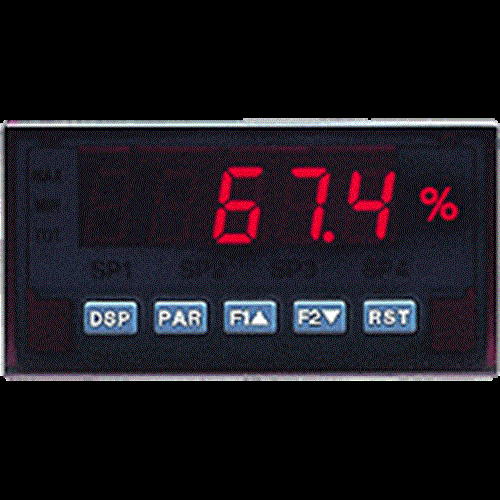

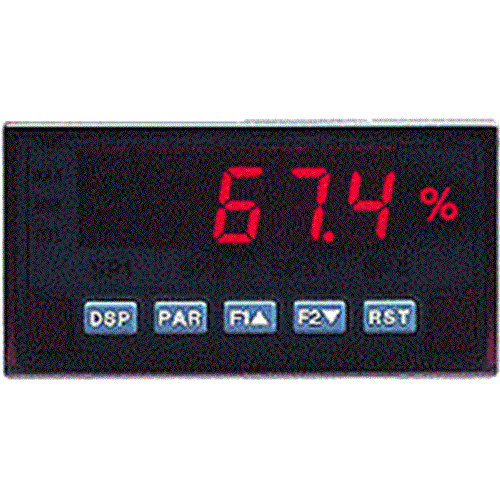

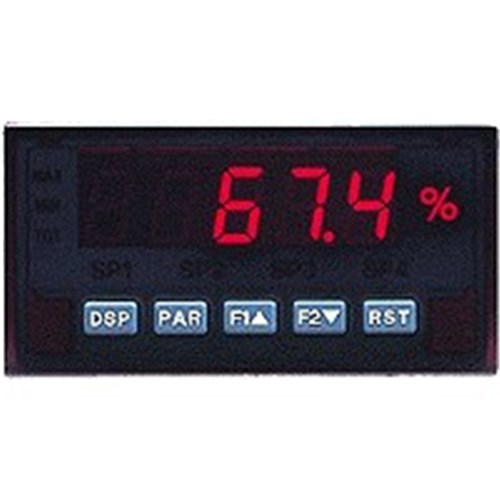

Product Code: PAXDP010

Operates at 24 VAC with 16 VA power
LED display with 0.56 in size
IP65 rated for dust and water protection
Vibration resistance from 5 to 150 Hz
Suitable for temps between 0 to 50°C

Specifications

General

Product Type

Dual Process Input Panel Meter

Brand

Red Lion

Series

PAX

Electrical

Analog Resolution 16 bit	Channel Isolation 500 V AC	Digital Inputs 3
Digital Outputs 0	Analog Outputs 0	Input Ratings ±10 V DC, ±20 mA DC
Input Type Process voltage, process current	Power Consumption 13 W at 18 to 36 V DC, 16 VA at 24 V AC	Supply Voltage 18 to 36 V DC, 24 V AC
Terminal Type High-compression cage-clamp	Analog Inputs 2

Mechanical

Housing Material

Polycarbonate

Dimensions & Physical Data

Depth

104.1mm

Height

49.5mm

Width

96.5mm

Environmental

Storage Temperature

-40°C to 60°C

Operating Temperature

0°C to 50°C

IP Rating

IP65

Communication & Control

Ethernet Ports 0	Expandable Communications Yes	Fieldbus Interface DeviceNet, PROFIBUS-DP
Serial Ports 0	USB Port 0	Supported Serial Protocols RLC Protocol (ASCII), Modbus RTU, Modbus ASCII

Safety, Standards & Compliance

Certifications / Approvals

CE, EN 61326-1, EN 61010-1, EN 61010-2-030, RoHS, UKCA, UL E179259

Accessories & Additional Information

Development Software

Crimson

DUAL PROCESS IN METER,DC PWR 1/8 DIN,5 DIGIT 0.56" RED LED DISPLAY,11-36VDC IN REDLION
