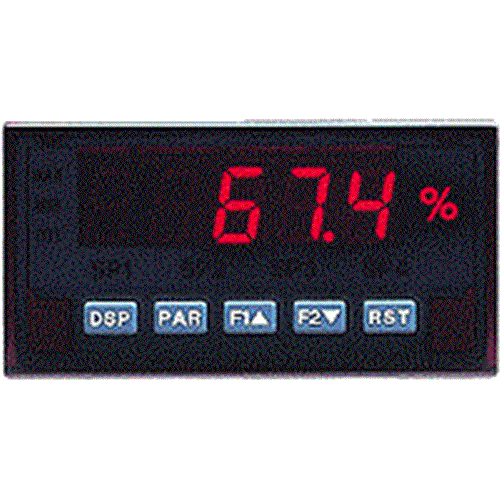

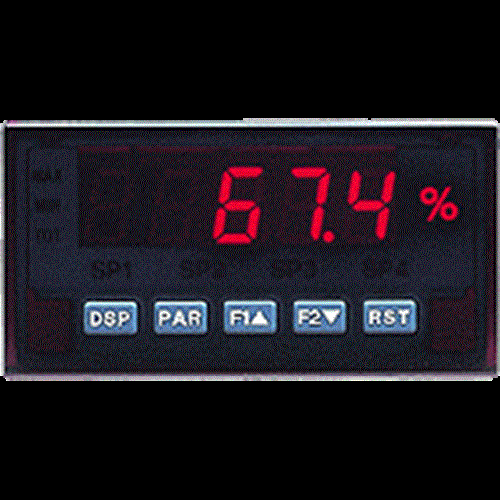

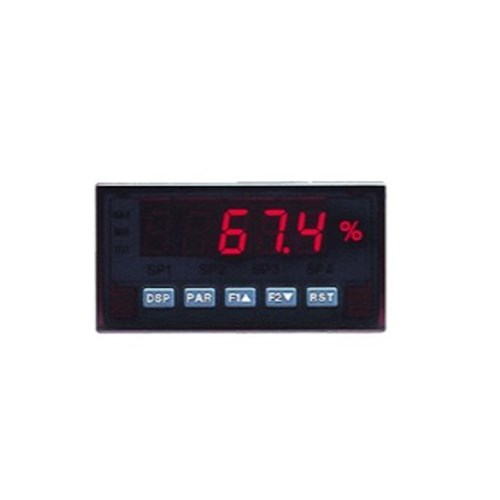

Red Lion PAXD0010 Universal Dc Input Meter 11-36VDC 5 Digit Red Backlight, LED Display

Product Code: PAXD0010

  • Wide measuring range up to +/-300 VDC
  • 5-digit LED display with red backlight
  • Panel mount design for easy installation
  • Operates on 11-36 VDC power supply
  • IP20/IP65 protection for durability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Panel Meter
Brand
Red Lion
Series
PAX

Electrical

Input Ratings
Voltage: ±200 mVDC/±2 VDC /±20 VDC/±300 VDCCurrent: ±200 µADC/ ±2 mADC/ ±20 mADC/ ±200 mADC/ ±2 ADC Ohm: 100 ohm/ 1000 ohm/ 10 Kohm
Input Type
Voltage/Current/Resistance
Power Consumption
11 W
Supply Voltage
11 to 36 VDC
Terminal Type
Screw Terminals

Mechanical

Housing Material
Polycarbonate
Mounting Method
Panel mount
Display Colour/Type
Red
Display Lines
1

Dimensions & Physical Data

Depth
203.2 mm
Height
101.6 mm
Width
152.4 mm
Display Size
0.56" (14.2 mm)

Environmental

Storage Temperature
-40 °C -60 °C
Operating Temperature
0 °C -50 °C
IP Rating
IP65

Safety, Standards & Compliance

Compliance Standards
IEC 68-2-27: Operational 25 g (10 g relay); IEC 68-2-6: Operational 5 to 150 Hz, 2 g/ UKCA/ UL/ CE
Hazardous Location Ratings
RoHs, EN 61326-1,
