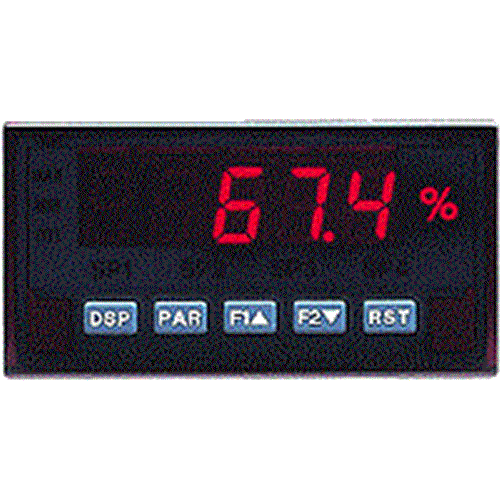

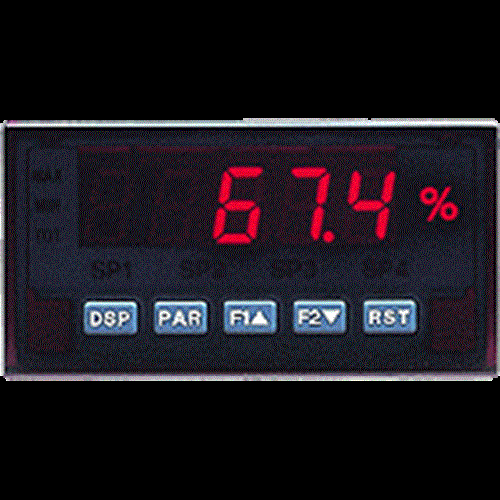

Product Code: PAXD0000

Wide measuring range up to +/-300 VDC
Rated voltage from 85-250 VAC
Clear 5-digit LED display with red backlight
Panel mounting for easy installation
High protection: IP20, IP65 compliant

Specifications

General

Product Type

Universal DC Input Panel Meter

Brand

Red Lion

Series

PAX

Electrical

Analog Resolution 16 bit	Channel Isolation 2300 V AC	Digital Inputs 3
Digital Outputs 0	Analog Outputs 0	Input Ratings ±200 mV DC, ±2 V DC, ±20 V DC, ±300 V DC, ±200 µA DC, ±2 mA DC, ±20 mA DC, ±200 mA DC, ±2 A DC
Input Type DC voltage, DC current	Power Consumption 15 VA	Supply Voltage 85 to 250 V AC
Terminal Type High-compression cage-clamp	Analog Inputs 1

Mechanical

Housing Material

Polycarbonate

Mounting Method

Panel mount

Dimensions & Physical Data

Depth

104.1 mm

Height

49.5 mm

Width

96.5 mm

Environmental

Storage Temperature

-40 to 60 °C

Operating Temperature

0 to 50 °C

IP Rating

IP65

Communication & Control

Ethernet Ports 0	Expandable Communications Yes	Fieldbus Interface DeviceNet, PROFIBUS-DP
Serial Ports 0	USB Port 0	Supported Serial Protocols RLC Protocol (ASCII), Modbus RTU, Modbus ASCII

Safety, Standards & Compliance

Compliance Standards

CE, EN 61326-1, EN 61010-1, EN 61010-2-030, RoHS, UKCA, UL E179259

Accessories & Additional Information

Development Software

Crimson

PAX UNIV. DC IN METER,AC PWR 1/8 DIN,5 DIGIT 0.56" RED LED DISPLAY,85-250 VAC IN REDLION
