Product Code: PAXCK000

Compatible with 85-250 VAC
Energy efficient at 18 VA
Dual frequency: 50/60 Hz
Clear LED display, 0.56 in size
Durable IP65 protection

Specifications

General

Product Type

Timer / Real-Time Clock / Counter

Brand

Red Lion

Series

PAX

Electrical

Channel Isolation 2300 V AC	Digital Inputs 3	Digital Outputs 0
Analog Outputs 0	Input Type Sink/source logic, switch contact	Power Consumption 18 VA
Supply Voltage 85 to 250 V AC	Terminal Type High-compression cage-clamp	Analog Inputs 0

Mechanical

Housing Material

Polycarbonate

Mounting Method

Panel mount

Dimensions & Physical Data

Depth

104.1 mm

Height

49.5 mm

Width

96.5 mm

Environmental

Storage Temperature

-40 to 60 °C

Operating Temperature

0 to 50 °C

IP Rating

IP65

Communication & Control

Ethernet Ports 0	Expandable Communications Yes	Fieldbus Interface DeviceNet, PROFIBUS-DP
Serial Ports 0	USB Port 0	Supported Serial Protocols RLC Protocol (ASCII), Modbus RTU, Modbus ASCII

Safety, Standards & Compliance

Compliance Standards

CE, EN 61326-1, EN 61010-1, EN 61010-2-030, RoHS, UKCA, UL E179259

Accessories & Additional Information

Development Software

Crimson

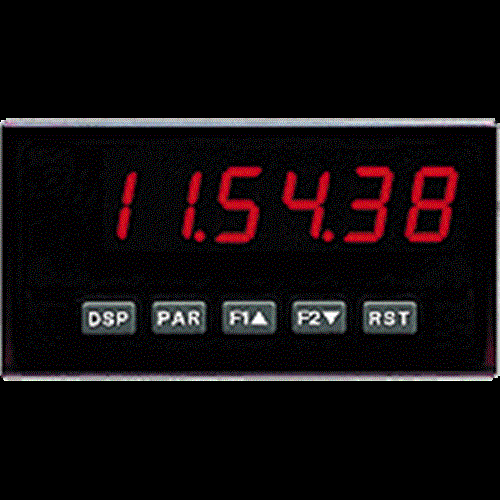

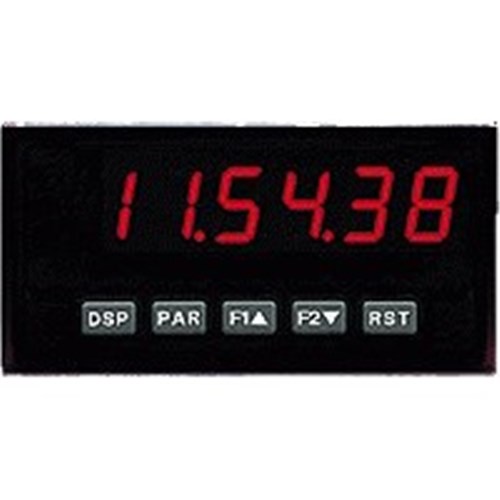

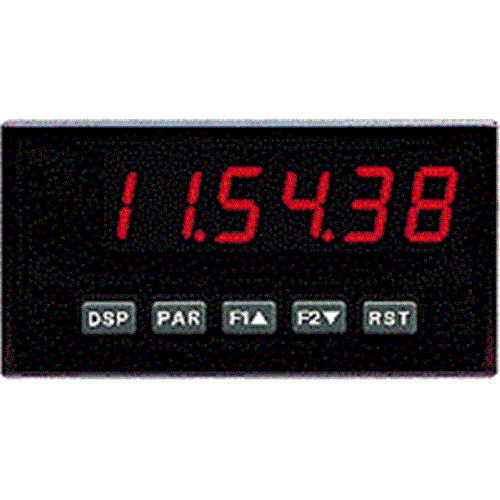

PAX TIMER/REAL-TIME CLOCK,AC 1/8 DIN,6 DIGIT 0.56" RED LED DISPLAY,85-250VAC IN REDLION
