Product Code: PAXC0020

Measures up to 34 KHz with various inputs
Operates on 85-250 VAC voltage
Features a red backlit LED display
Panel mounting with IP20/IP65 protection
Complies with CE, RoHS, UL standards

Specifications

General

Product Type

Dual Counter

Brand

Red Lion

Series

PAX

Electrical

Channel Isolation 2300 V AC	Digital Inputs 2	Digital Outputs 0
Analog Outputs 0	Input Ratings 30 V DC max, 34 kHz max	Input Type Switch contact, TTL, magnetic pickup, RLC sensor, NPN open collector
Power Consumption 18 VA	Supply Voltage 85 to 250 V AC	Terminal Type High-compression cage-clamp
Analog Inputs 0

Mechanical

Housing Material

Polycarbonate

Mounting Method

Panel mount

Dimensions & Physical Data

Depth

104.1 mm

Height

49.5 mm

Width

96.5 mm

Environmental

Storage Temperature

-40 to 60 °C

Operating Temperature

0 to 50 °C

IP Rating

IP65

Communication & Control

Ethernet Ports 0	Expandable Communications Yes	Fieldbus Interface PROFIBUS-DP
Serial Ports 0	USB Port 0	Supported Serial Protocols RLC Protocol (ASCII), Modbus RTU, Modbus ASCII

Safety, Standards & Compliance

Compliance Standards

CE, EN 61326-1, EN 61010-1, EN 61010-2-030, RoHS, UKCA, UL E179259

Accessories & Additional Information

Development Software

Crimson

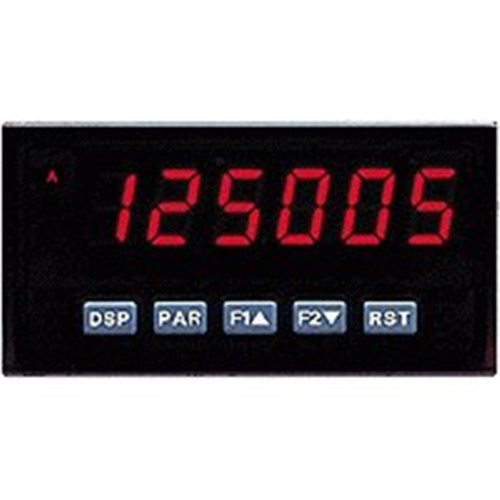

PAX DUAL COUNTER,1/8 DIN,AC 6 DIGIT 0.56" RED LED DISPLAY NEMA 4X/IP65 RATED REDLION
