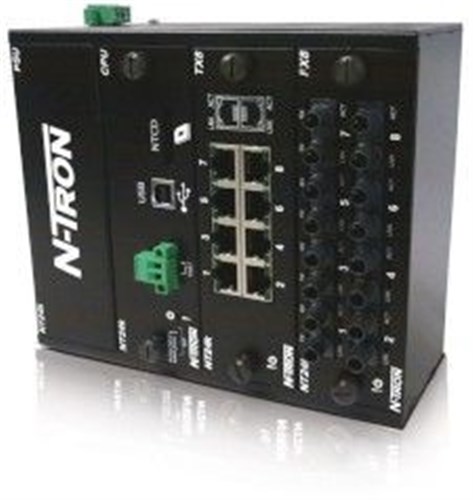

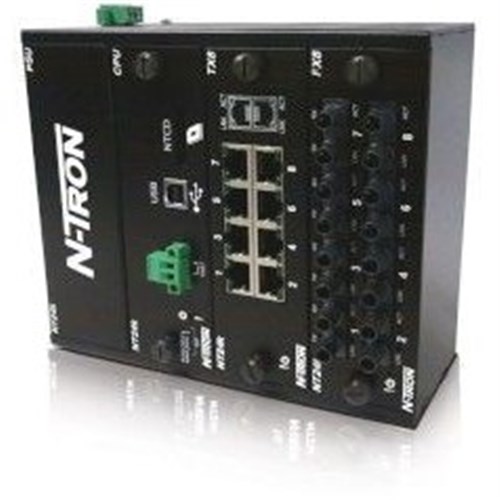

Red Lion NT24K-DR16-DC Modular Managed Industrial Ethernet Switch 8 -Port 18-49VDC

Product Code: NT24K-DR16-DC

  • Operates on 18-49 VDC
  • DIN Rail mounting for easy installation
  • Wide temp range: -40 to 75°C
  • UL508 approved for safety
  • Modular-Rack design with 8 ports
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Modular Managed Industrial Ethernet Switch
Brand
Red Lion
Series
N-Tron

Electrical

Input Voltage
10V to 49V DC

Mechanical

Housing Material
Metal Enclosure
Mounting
DIN rail mount (bracket included)

Dimensions & Physical Data

Depth
116.5mm
Height
152mm
Weight
3.3975kg
Width
172.2mm

Environmental

Operating Temperature
-40°C to 85°C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
Up to 16x RJ45, up to 16x SC or ST fiber ports, up to 16x LC fiber ports
Total Ports
16
Traffic Management
Auto-IGMP Snooping, QoS, Broadcast/multicast storm control, Per-port ingress/egress rate limiting
Network Management
SNMP V1/2/3

Safety, Standards & Compliance

Standards and Approvals
CE, EMC, FCC, RoHS, UL
