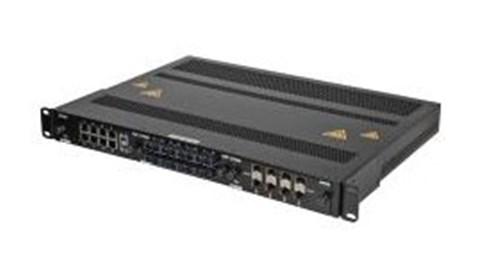

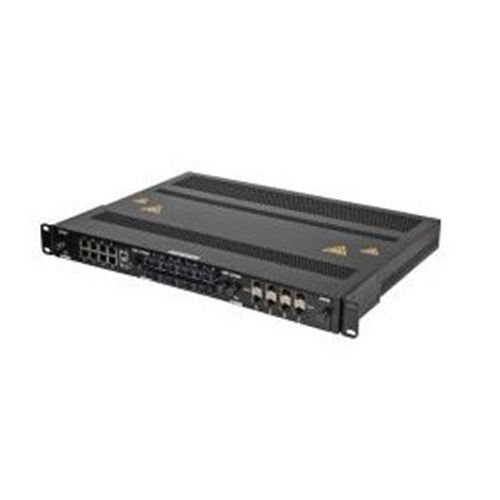

Red Lion NT24K-AC1 Modular Managed Industrial Ethernet Switch 24 -Port 90-300VDC

Product Code: NT24K-AC1

  • Operates in extreme temps: -40 to 85°C
  • Supports up to 16k MAC addresses
  • Wide voltage range: 90-300 VDC
  • Rack mountable design for easy installation
  • Equipped with 24 ports for connectivity
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Ethernet Switch
Brand
Red Lion
Series
N-Tron

Electrical

Input Voltage
120V AC

Mechanical

Housing Material
Metal Enclosure
Mounting
Rackmount

Dimensions & Physical Data

Depth
320mm
Height
48mm
Weight
6.804kg
Width
445mm

Environmental

Operating Temperature
-40°C to 85°C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
Up to 24x RJ45, up to 24x SC or ST fiber ports, up to 24x LC fiber ports
Total Ports
24
Traffic Management
Auto-IGMP Snooping, QoS, Broadcast/multicast storm control, Per-port ingress/egress rate limiting
Network Management
SNMP V1/2/3

Safety, Standards & Compliance

Standards and Approvals
CE, EMC, FCC, RoHS, UL
