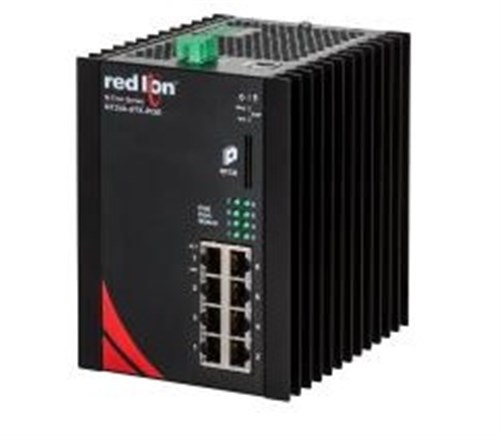

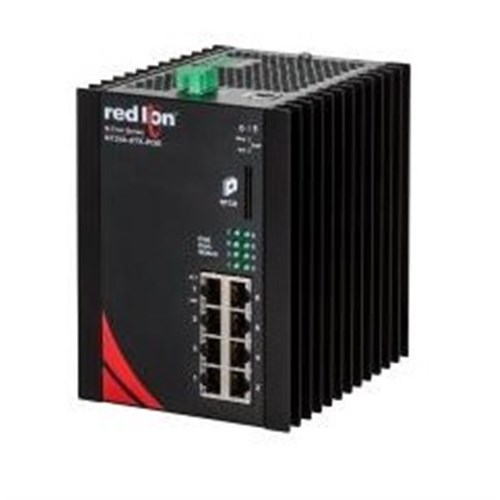

Product Code: NT24K-8TX-POE

8-port industrial Ethernet switch
Operates on 22-49 VDC power range
DIN rail mounting for easy installation
Supports up to 16k MAC addresses
RoHS compliant for environmental safety

Specifications

General

Product Type

Managed Industrial Ethernet Switch

Brand

Red Lion

Series

N- Tron

Electrical

Rated Power

30W

Rated Voltage (Ur)

22V to 49V DC

Mechanical

Mounting

DIN rail mount (bracket included)

Port Configuration

8x RJ45, 1x USB Type B

Dimensions & Physical Data

Weight

1.46319kg

Environmental

Storage Temperature

-40°C to 85°C

Operating Temperature

-40°C to 80°C

IP Rating

IP30

Communication & Control

USB Port

Type B

Traffic Management

Auto-IGMP Snooping, QoS, Broadcast/multicast storm control, Per-port ingress/egress rate limiting

Network Management

SNMP V1/2/3

Safety, Standards & Compliance

Standards and Approvals

CE, EMC, FCC, RoHS, UL

Red Lion NT24K-8TX-POE PoE Managed Industrial Ethernet Switch 22-49VDC DIN Rail Mount

Product Code: NT24K-8TX-POE
