Product Code: NT24K-16TX-POE

16-port industrial Ethernet switch
Supports 22-49 VDC input
DIN rail mounting for easy installation
Handles up to 16k MAC addresses
RoHS compliant

Specifications

General

Product Type

POE Managed Industrial Ethernet Switch

Brand

Red Lion

Series

N- Tron

Electrical

Rated Power

30W

Rated Voltage (Ur)

22V to 49V DC

Mechanical

Mounting

DIN rail mount (bracket included)

Port Configuration

16x RJ45, 1x USB Type B

Dimensions & Physical Data

Weight

1.47225kg

Environmental

Storage Temperature

-40°C to 85°C

Operating Temperature

-40°C to 80°C

IP Rating

IP20

Communication & Control

USB Port

Type B

Traffic Management

Auto-IGMP Snooping, QoS, Broadcast/multicast storm control, Per-port ingress/egress rate limiting

Network Management

SNMP V1/2/3

Safety, Standards & Compliance

Standards and Approvals

CE, EMC, FCC, RoHS, UL UL 508 Listed; ANSI/ISA 12.12.01-2013 Class I & II Div 2 / Class III Div 1-2 Groups A–D; CAN/CSA-C22.2 No. 213-M1987; CAN/CSA-C22.2 No. 14-M1987; ABS Type Approved; GOST-R Certified

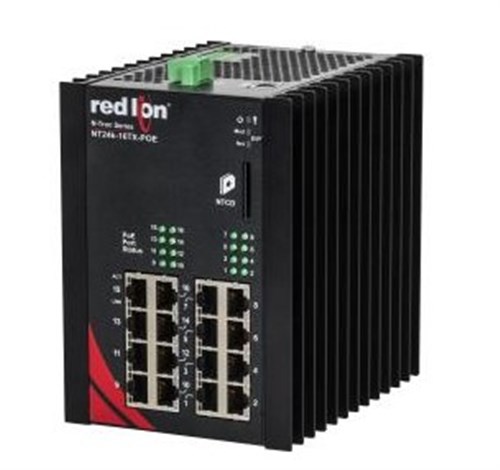

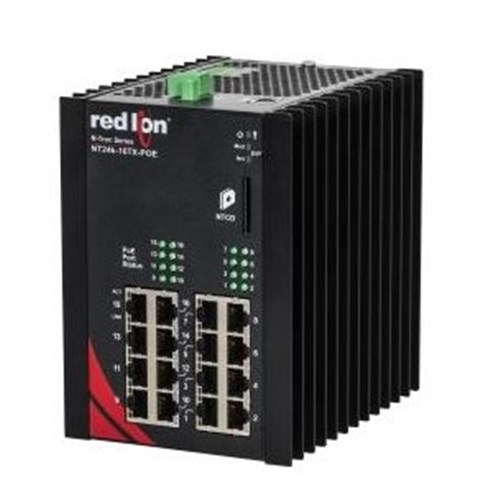

Red Lion NT24K-16TX-POE PoE Managed Industrial Ethernet Switch 22-49VDC DIN Rail Mount

Product Code: NT24K-16TX-POE
