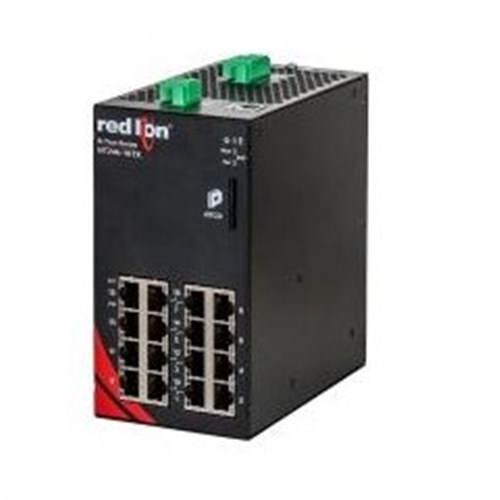

Red Lion NT24K-16TX Managed Industrial Ethernet Switch 16 -Port 10-49VDC

Product Code: NT24K-16TX

  • Supports 16 ports for extensive connectivity
  • Operates in extreme temps from -40 to 85°C
  • Compact DIN rail mounting design
  • Complies with RoHS standards
  • Wide voltage range: 10-49 VDC
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Ethernet Switch
Brand
Red Lion
Series
N-Tron

Electrical

Input Voltage
10V to 49V DC

Mechanical

Housing Material
Metal Enclosure
Mounting
DIN rail mount (bracket included)

Dimensions & Physical Data

Depth
140.7mm
Height
149.2mm
Weight
0.89kg
Width
78.7mm

Environmental

Operating Temperature
-40°C to 85°C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
16x RJ45, 1x USB Type B
Total Ports
16
Traffic Management
Auto-IGMP Snooping, QoS, Broadcast/multicast storm control, Per-port ingress/egress rate limiting
Network Management
SNMP V1/2/3

Safety, Standards & Compliance

Standards and Approvals
CE, EMC, FCC, RoHS, UL
