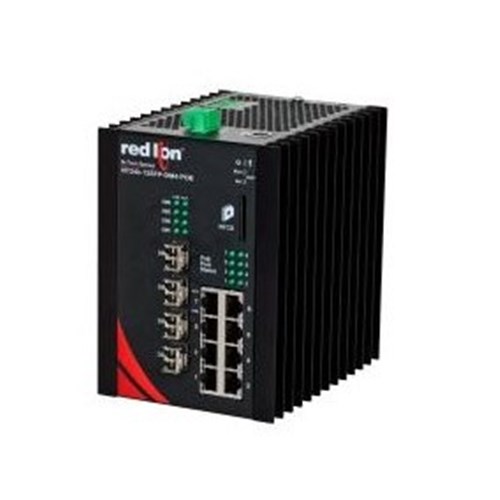

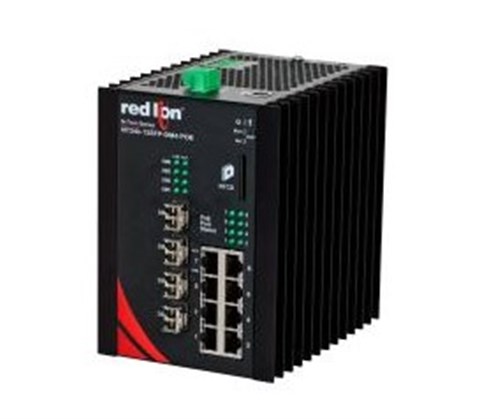

Red Lion NT24K-12SFP-DM4-POE PoE Managed Industrial Ethernet Switch 22-49VDC DIN Rail Mount

Product Code: NT24K-12SFP-DM4-POE

  • Industrial Ethernet Switch with 12 ports
  • Operates at 22-49 VDC, 11.6 A current
  • DIN Rail mounting for easy installation
  • Supports up to 16k MAC addresses
  • RoHS compliant for environmental safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Managed Ethernet Switch
Brand
Red Lion
Series
N- Tron

Electrical

Rated Power
30W
Rated Voltage (Ur)
22V to 49V DC

Mechanical

Mounting
DIN rail mount (bracket included)
Port Configuration
8x RJ45, 4x SFP

Dimensions & Physical Data

Depth
276.225mm
Height
149.225mm
Weight
1.447kg
Width
263.525mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-40°C to 80°C
IP Rating
IP20

Communication & Control

USB Port
Type B
Traffic Management
Auto-IGMP Snooping, QoS, Broadcast/multicast storm control, Per-port ingress/egress rate limiting
Network Management
SNMP V1/2/3
Network
IEEE 802.3 (10 Mbps), 802.3u (100 Mbps), 802.3ab (1 Gbps)

Safety, Standards & Compliance

Standards and Approvals
UL 508 Listed; ANSI/ISA 12.12.01-2013 Class I & II Div 2 / Class III Div 1-2 Groups A–D; CAN/CSA-C22.2 No. 213-M1987; CAN/CSA-C22.2 No. 14-M1987; ABS Type Approved; GOST-R Certified CE, EMC, FCC, RoHS, UL
