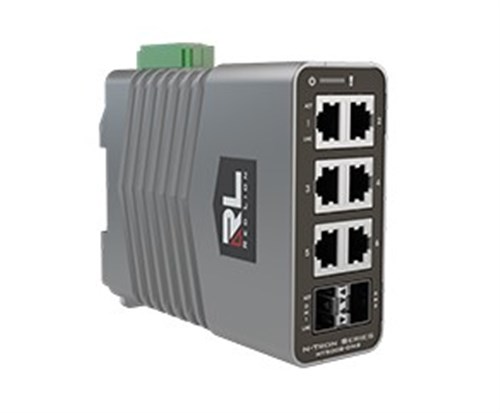

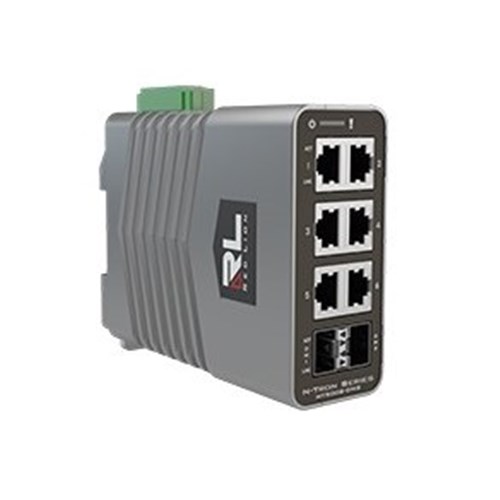

Red Lion NT-5008-DM2-0000 Gigabit Managed Industrial Ethernet Switch 8 -Port 10-49VDC

Product Code: NT-5008-DM2-0000

  • Supports 8 Ethernet ports for robust connectivity
  • Wide voltage range: 10-49 VDC for flexibility
  • Operates in extreme temps: -40 to 85°C
  • Compact design with DIN rail or panel mount options
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Ethernet Switch
Brand
Red Lion
Series
N-Tron

Electrical

Input Voltage
10V to 49V DC

Mechanical

Housing Material
Metal
Mounting
DIN rail mount (bracket included), Wall mount

Dimensions & Physical Data

Depth
122.6mm
Height
106.3mm
Weight
0.52kg
Width
42mm

Environmental

Operating Temperature
-40°C to 75°C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
6x RJ45, 2x SFP (LC) Optional
Total Ports
8
Traffic Management
Auto-IGMP Snooping, QoS, Broadcast/multicast storm control, Per-port ingress/egress rate limiting
Network Management
SNMP V1/2/3

Safety, Standards & Compliance

Standards and Approvals
ABS, ATEX, CE, EMC, FCC, RoHS, UL UL 61010 & CSA C22.2 No. 61010-1; UL 121201 & CSA C22.2 No. 213; ATEX II 3 G Ex ec nC IIC T4 Gc (UL 20 ATEX 2645X); IECEx Ex ec nC IIC T4 Gc (UL 22.0038X); UKEx Ex ec nC IIC T4 Gc (UL 22UKEX2346X)
