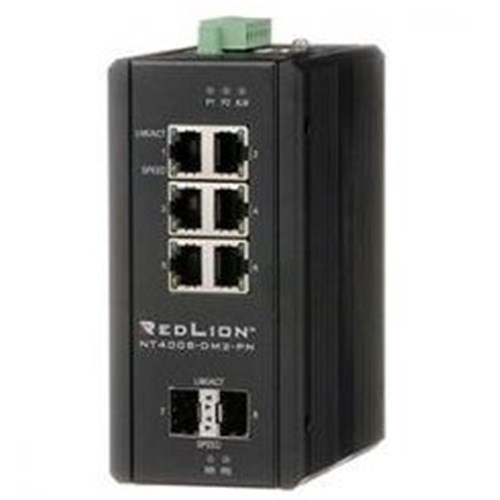

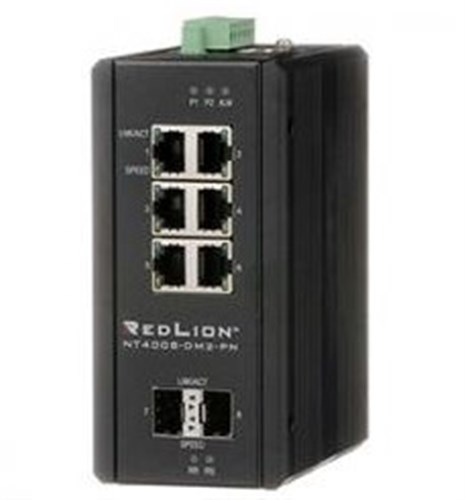

Red Lion NT-4008-DM2-PN-M Gigabit Managed Industrial Ethernet Switch 8 -Port 12-58VDC

Product Code: NT-4008-DM2-PN-M

  • 8-port industrial Ethernet switch
  • Wide voltage range: 12-58 VDC
  • DIN rail or panel mounting options
  • Operates in -40 to 75°C temperature range
  • ATEX, EMI/EMC, RoHS compliant
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Managed Industrial Ethernet Switch
Brand
Red Lion
Series
N-Tron

Electrical

Input Voltage
12V to 58V DC

Mechanical

Housing Material
Metal
Mounting
DIN rail mount (bracket included), Panel mount

Dimensions & Physical Data

Depth
113.8mm
Height
139.6mm
Weight
0.7kg
Width
62mm

Environmental

Operating Temperature
-40°C to 75°C
IP Rating
IP30

Communication & Control

Connectors/Input/Output
6x RJ45, 2x SFP (LC) Optional
Total Ports
8
Traffic Management
QoS IEEE 802.1p
Network Management
SNMP V1/2/3

Safety, Standards & Compliance

Standards and Approvals
ABS, ATEX, EMC, FCC, RoHS, UL UL 61010 & CSA C22.2 No. 61010 Ordinary Locations; UL 121201 & CSA C22.2 No. 213 Class I, Division 2 Hazardous Locations; ATEX II 3 G Ex nA nC IIC T4 Gc (UL 20 ATEX 2433X); EN 60079-0:2012+A11:2013; EN 60079-15:2010; IEC 60079-0 6th Edition; IEC 60079-15 4th Edition
