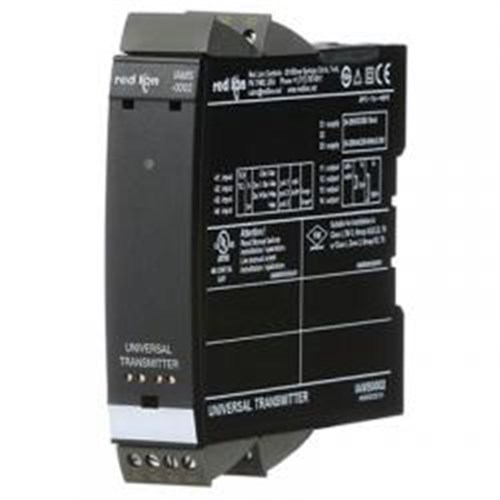

Red Lion IAMS0002 Universal Transmitter W/Analog Output 19.2-300VDC

Product Code: IAMS0002

  • Suitable for DIN rail mounting
  • Wide voltage range: 19.2-300 VDC
  • Compact design with 5 W power rating
  • IP65 protection against dust and water
  • Certified to CE, EN, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Universal Transmitter
Brand
Red Lion
Series
IAMS

Electrical

Output Ratings
Current: 0...20 mAVoltage: 0...10 VDC
Input Ratings
Current: 0...20 mAVoltage: 0...12 VDCThermocouple: B, E, J, K, L, N, R, S, T, U, W3, W5, LRResistance: Pt10...Pt1000,Ni50...Ni1000,Cu10...Cu100, Potentiometer
Input Type
Current/ Voltage/ Thermocouple/Resistance
Output Type
Current/ Voltage
Power Consumption
2 W
Supply Voltage
19.2 - 300 VDC
Terminal Type
Screw Terminals

Mechanical

Mounting Method
DIN rail mount (bracket included)

Dimensions & Physical Data

Depth
104 mm
Height
109 mm
Width
23.5 mm

Environmental

Operating Temperature
-20 °C - 60 °C
IP Rating
IP20

Safety, Standards & Compliance

Compliance Standards
UL, Standard for SafetyEN 61326-1 (IAMS0002)EMC 2014/30/EU: EN 61326-1 (IAMS 0022 / 0020)LVD 2006/95/EC: EN 61010-1 (IAMS0002)LVD 2014/35/EU: EN 61010-1 (IAMS 0022 / 0020)FM: 3600, 3611, 3810 and ISA 82.02.01
Hazardous Location Ratings
Class I, Div. 2, Group A, B, C, D Class I, Div. 2, Group IIC Zone 2
