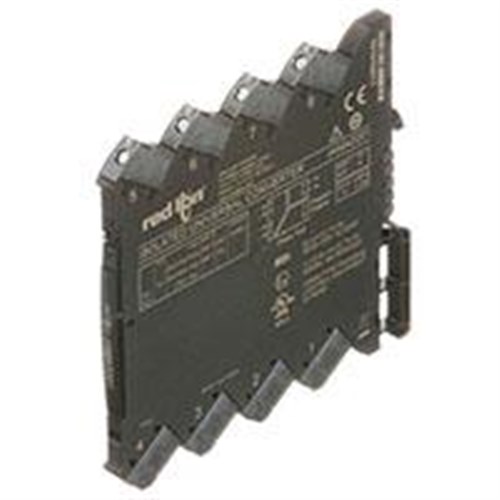

Red Lion IAMA0001 Universal Signal Conditioner 24VDC

Product Code: IAMA0001

  • Operates at 24 VDC with 5 W power
  • Easy DIN Rail mounting
  • IP65 protection for harsh environments
  • ATEx/IECex certified for safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Universal converter
Brand
Red Lion
Series
IAMA

Electrical

Output Ratings
Current: 0...23 mAVoltage: 0...10 VDC
Input Ratings
Current: 0...23 mAVoltage: 0...12 VDCThermocouple: B, E, J, K, L, N, R, S, T, U, W3, W5, LRResistance: Pt100, Ni100, Potentiometer
Input Type
Current/ Voltage/ Thermocouple/Resistance
Output Type
Current/ Voltage
Power Consumption
1.2 W
Supply Voltage
16.8 to 31.2 VDC
Terminal Type
Screw Terminals

Mechanical

Mounting Method
DIN rail mount (bracket included)

Dimensions & Physical Data

Depth
115 mm
Height
113 mm
Width
6.1 mm

Environmental

Storage Temperature
-40°C to +85°C
Operating Temperature
-20°C to +60°C
IP Rating
IP20

Safety, Standards & Compliance

Compliance Standards
UL, safety
Hazardous Location Ratings
ATEX zone 2 / IECEx Zone 2

Documents

IPD Product Catalogue V17
