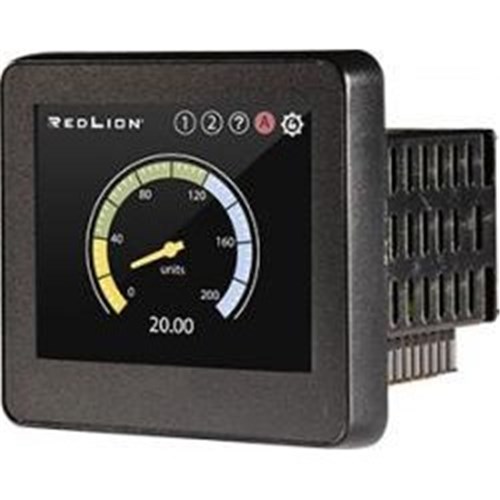

PM-50 DIN GRAPHICAL METER-3.5" 18-BIT COLOR DISPLAY NEMA 4X/IP65 REDLION

Product Code: PM500D0301600F00

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Graphical Digital Panel Meter
Brand
Red Lion
Series
PM-50

Electrical

Digital Outputs
2
Analog Outputs
0
Input Type
NPN, PNP, logic, switch contact, relay contact, inductive signal
Output Type
Solid-state relay
Power Consumption
4.6 W
Supply Voltage
10 to 30 V DC
Analog Inputs
0

Mechanical

Housing Material
Polycarbonate
Mounting Method
Panel mount

Environmental

Storage Temperature
-20 to 60 °C
Operating Temperature
-10 to 55 °C
IP Rating
IP65

Communication & Control

Ethernet Ports
0
Expandable Communications
Yes
Serial Ports
1
USB Port
0
Supported Ethernet Protocols
Modbus TCP
Supported Serial Protocols
Modbus RTU

Safety, Standards & Compliance

Compliance Standards
CE, RoHS, UKCA, UL, EN 61010-1, EN 61000-6-2, EN 61000-6-4

Accessories & Additional Information

Development Software
Web browser, PM-50 mobile app

Documents

IPD Product Catalogue V17
