Specifications

Product Type

Universal Input Module

Brand

Red Lion

Series

Graphite

Analog Resolution 16-bit	Channel Isolation 500 Vrms @ 50/60 Hz for 1 minute	Input Ratings 0-20 mA or 4-20 mA; 0-10 VDC; various temperature ranges for thermocouples and RTDs
Input Type Thermocouples (Types T, E, J, K, R, S, B, N, C), RTDs (100 O platinum, 120 O nickel, 50 O copper), 0/4-20 mA, and 0-10 V process signals	Power Consumption 1.8W	Terminal Type Screw terminal
Analog Inputs 4 isolated universal analog inputs

Housing Material

All metal construction

Depth

76mm

Height

118mm

Width

32mm

Storage Temperature

-40°C to 85°C

Operating Temperature

-40°C to 75°C

USB Port

1 (proprietary USB)

Hazardous Location Ratings

Class I, Division 2, Groups A, B, C, and D T4/ II 3 G Ex nA IIC T4 Gc (ATEX)

Certifications / Approvals

CE, EN 61326-1, IEC/EN 61010-1, RoHS

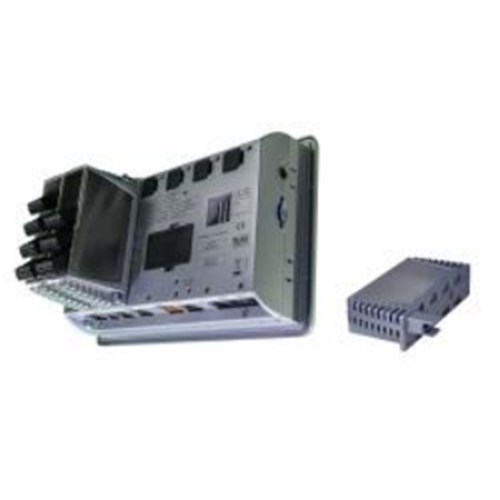

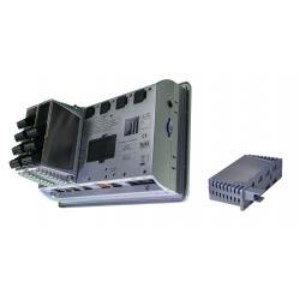

Red Lion GMUIN400 Data Acquisition Module 0-10VDC
