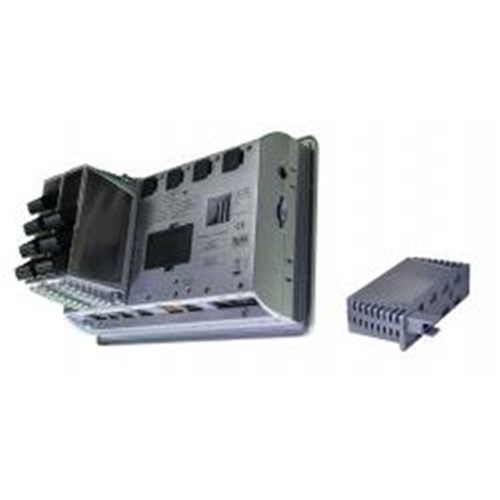

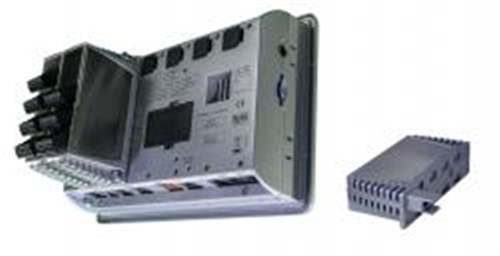

Red Lion GMTC8000 Data Acquisition Module 30VDC

Product Code: GMTC8000

  • Rated for 30 VDC applications
  • Certified ATEx and IECEx standards
  • Lightweight at 224 g
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Analog Input Module
Brand
Red Lion
Series
Graphite

Electrical

Analog Resolution
16-bit
Channel Isolation
500 Vrms @ 50/60 Hz for 1 minute
Input Ratings
20 MO input impedance
Input Type
Thermocouple and Millivolt
Power Consumption
1.4W
Terminal Type
Screw terminal
Analog Inputs
8

Mechanical

Housing Material
All metal construction

Dimensions & Physical Data

Depth
76mm
Height
118mm
Width
32mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-40°C to 75°C

Communication & Control

USB Port
1 (proprietary USB)

Safety, Standards & Compliance

Hazardous Location Ratings
Class I, Division 2, Groups A, B, C, and D T4/ II 3 G Ex nA IIC T4 Gc (ATEX)
Certifications / Approvals
CE, EN 61326-1, IEC/EN 61010-1, RoHS
