Specifications

Product Type

Strain Gage Module

Brand

Red Lion

Series

Graphite

Analog Resolution 16-bit	Channel Isolation 500 Vrms @ 50/60 Hz for 1 minute	Digital Outputs 3 relay
Output Ratings 3 Amps @ 125 VAC; Analog: 0-10 V, 0/4-20 mA	Analog Outputs Software programmable	Input Ratings ±20.000 mVDC, ±33.000 mVDC, or ±200.00 mVDC
Input Type 4-wire bridge or 2-wire	Output Type Relay and Analog	Power Consumption 5.6W
Terminal Type Screw terminal	Analog Inputs 2 Strain Gage Input

Housing Material

All metal construction

Depth

76mm

Height

118mm

Width

32mm

Storage Temperature

-40°C to 85°C

Operating Temperature

-40°C to 70°C

USB Port

1 (proprietary USB)

Hazardous Location Ratings

Class I, Division 2, Groups A, B, C, and D T4/ II 3 G Ex nA IIC T4 Gc (ATEX)

Certifications / Approvals

CE, EN 61326-1, IEC/EN 61010-1, RoHS

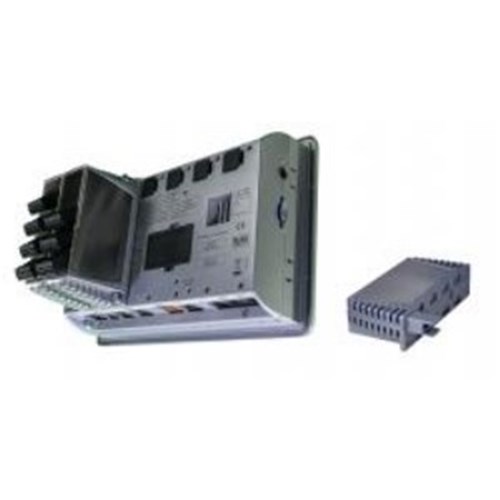

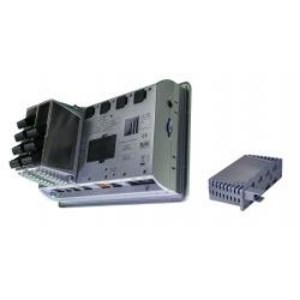

Red Lion GMSG11R0 Data Acquisition Module 2 Inputs 0-10VDC
