Product Code: GMPBDP00

Supports Profibus communication protocol
Operates at 30 VDC, 2.6 W power
Wide temp range: -40 to 75°C
ATEx and IECEx certified for safety
Lightweight design at 224 g

Specifications

General

Product Type

PROFIBUS - DP Module

Brand

Red Lion

Series

Graphite

Electrical

Channel Isolation 500 Vrms @ 50/60 Hz for 1 minute between network and host	Output Ratings +5 VDC @ 90 mA max. on D-Sub pins 5 and 6	Output Type PROFIBUS-DP
Power Consumption 2.6W	Terminal Type Screw terminal

Mechanical

Housing Material

All metal construction

Dimensions & Physical Data

Depth

66mm

Height

118mm

Width

32mm

Environmental

Storage Temperature

-40°C to 85°C

Operating Temperature

-40°C to 75°C

Communication & Control

Expandable Communications

Connects Graphite products to PROFIBUS-DP network

USB Port

1 (proprietary USB)

Safety, Standards & Compliance

Hazardous Location Ratings

Class I, Division 2, Groups A, B, C, and D T4/ II 3 G Ex nA IIC T4 Gc (ATEX)

Certifications / Approvals

CE, EN 61326-1, IEC/EN 61010-1, RoHS

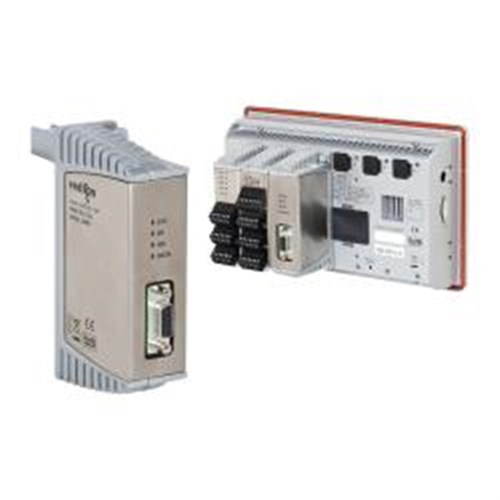

Red Lion GMPBDP00 Communication Module Profibus 30VDC

Product Code: GMPBDP00
