Specifications

Product Type

Pid Control Module

Brand

Red Lion

Series

Graphite

Analog Resolution 16-bit	Channel Isolation 500 Vrms @ 50/60 Hz for 1 minute between inputs, outputs, and power	Digital Outputs 4 (SSR NFET)
Output Ratings 1A max @ 30VDC	Input Type Universal (Thermocouple, RTD, 0-10 V, 0/4-20 mA)	Output Type Solid State NFET
Power Consumption 2.7W	Terminal Type Screw terminal	Analog Inputs 2 Universal

Housing Material

All metal construction

Depth

76mm

Height

118mm

Width

32mm

Storage Temperature

-40°C to 85°C

Operating Temperature

-40°C to 75°C

USB Port

1 (proprietary USB)

Hazardous Location Ratings

Class I, Division 2, Groups A, B, C, and D T4/ II 3 G Ex nA IIC T4 Gc (ATEX)

Certifications / Approvals

CE, EN 61326-1, IEC/EN 61010-1, RoHS

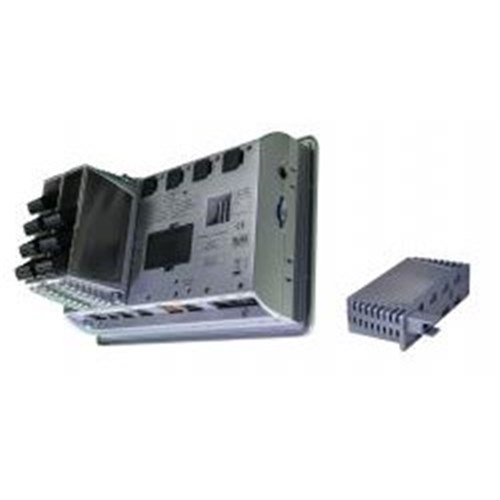

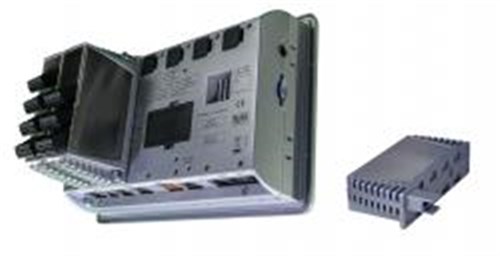

Red Lion GMP2S000 PID Module 4 Digital Outputs 30VDC
