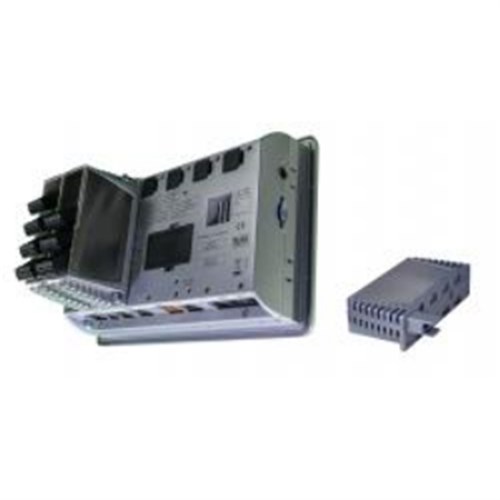

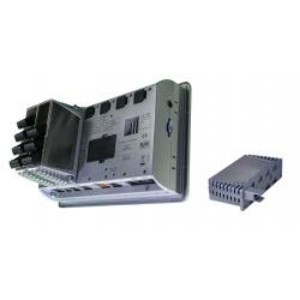

Red Lion GMP1RA00 PID Module 3 Digital Outputs 0-10VDC

Product Code: GMP1RA00

  • PID Controller with LED indicators
  • Voltage range of 0-10 VDC
  • Current range of 0-20 mA
  • Operates from -40 to 70°C
  • ATEx and IECEx approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pid Control Module
Brand
Red Lion
Series
Graphite

Electrical

Analog Resolution
16-bit
Channel Isolation
500 Vrms @ 50/60 Hz for 1 minute between inputs, outputs, and power
Digital Outputs
3 (Relays)
Output Ratings
3A @ 125VAC/30VDC
Analog Outputs
1
Input Type
Universal (Thermocouple, RTD, 0-10 V, 0/4-20 mA)
Output Type
Form A & C Relays
Power Consumption
3.3W
Terminal Type
Screw terminal
Analog Inputs
1 Universal

Mechanical

Housing Material
All metal construction

Dimensions & Physical Data

Depth
76mm
Height
118mm
Width
32mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-40°C to 70°C

Communication & Control

USB Port
1 (proprietary USB)

Safety, Standards & Compliance

Certifications / Approvals
CE, EN 61326-1, IEC/EN 61010-1, RoHS
