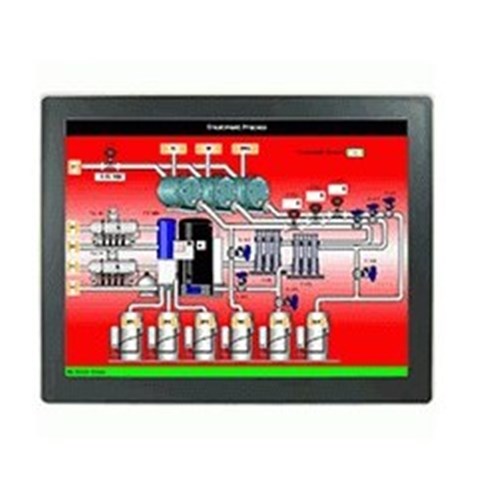

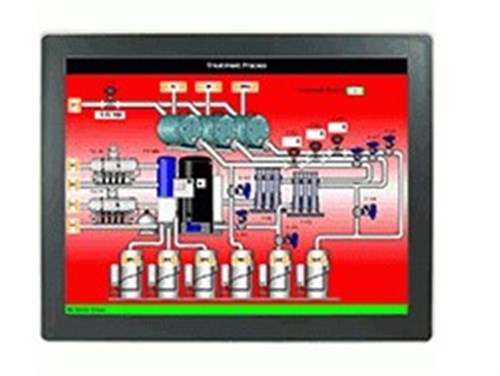

Red Lion G15C1100 HMI Touch Screen 15in LCD

Product Code: G15C1100

  • 15" LCD display with 1024x768 resolution
  • Durable cast aluminium construction
  • IP20 protection for indoor use
  • Compliant with ATEx, CE, IECEx standards
  • Panel mounting design
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Operator Interface Terminal
Brand
Red Lion
Series
Graphite

Electrical

Power Consumption
18W (30V)
Supply Voltage
10V to 30V DC
Sunlight Readable
No (400 cd/m²)
Touch Type
Resistive analog

Mechanical

Housing Material
Cast Aluminum
Display Colour/Type
16M Colors, XGA

Dimensions & Physical Data

Depth
54.3mm
Height
281.8mm
Width
356.3mm
Panel Cut-Out Size
13.390mm x 10.457mm
Display Size
15"

Environmental

Storage Temperature
-20°C to 70°C
Operating Temperature
-20°C to 60°C
IP Rating
IP66

Communication & Control

Ethernet Port Speed
10/100 Mbps
Ethernet Ports
2
Expandable Communications
Yes
Fieldbus Interface
Protocol Conversion
Serial Ports
4
USB Port
1 Device + 2 Host
Supported Ethernet Protocols
10 protocols simultaneously
Supported Serial Protocols
300+ built-in drivers

Safety, Standards & Compliance

Hazardous Location Ratings
II 3 G Ex ic nA IIC T4 Gc, II 3 D Ex tc IIIC T135°C Dc (ATEX/UKEX)
Certifications / Approvals
EN 61326-1, IEC/EN 61010-1, CE, RoHS, UL
