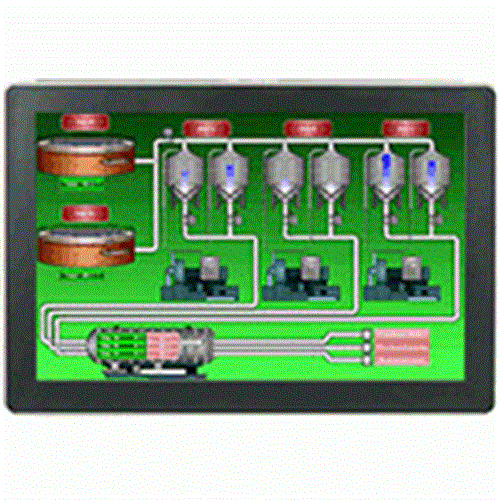

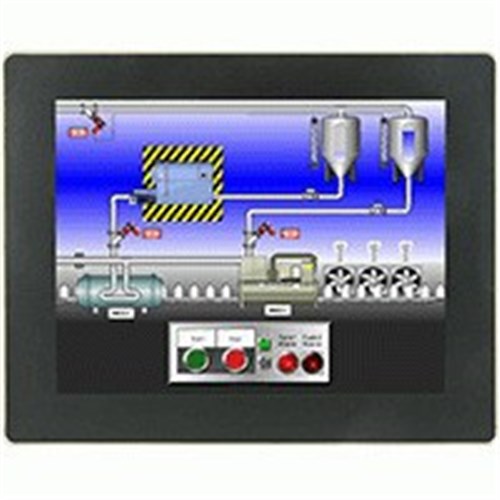

Red Lion G12C0000 HMI Touch Screen 12in LCD

Product Code: G12C0000

  • 12" LCD display with 1280x800 resolution
  • Robust cast aluminium panel mount design
  • Vibration resistant from 5-150 Hz
  • Complies with ATEx, CE, IECEx, RoHS standards
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Operator Interface Terminal
Brand
Red Lion
Series
Graphite

Electrical

Power Consumption
14W (30V)
Supply Voltage
10V to 30V DC
Sunlight Readable
No (400 cd/m²)
Touch Type
Resistive analog

Mechanical

Housing Material
Cast Aluminum
Display Colour/Type
16M Colors, WXGA

Dimensions & Physical Data

Depth
52.4mm
Height
208.3mm
Width
307.3mm
Panel Cut-Out Size
11.458mm x 7.561mm
Display Size
12"

Environmental

Storage Temperature
-20°C to 70°C
Operating Temperature
-20°C to 60°C
IP Rating
IP66

Communication & Control

Ethernet Port Speed
10/100 Mbps
Ethernet Ports
1
Expandable Communications
Yes
Fieldbus Interface
Protocol Conversion
Serial Ports
3
USB Port
1 Device + 2 Host
Supported Ethernet Protocols
10 protocols simultaneously
Supported Serial Protocols
300+ built-in drivers

Safety, Standards & Compliance

Hazardous Location Ratings
II 3 G Ex ic nA IIC T4 Gc, II 3 D Ex tc IIIC T135°C Dc (ATEX/UKEX)
Certifications / Approvals
EN 61326-1, IEC/EN 61010-1, CE, RoHS, UL
