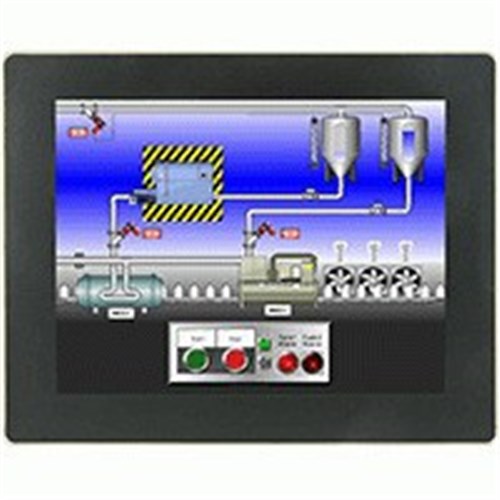

Red Lion G10R0000 HMI Touch Screen 10in LCD

Product Code: G10R0000

  • 10" LCD display with 800x600 resolution
  • Durable cast aluminium construction
  • Panel mounting for easy installation
  • Meets ATEx, CE, IECEx, PESO, RoHS, UKEx standards
  • IP20 protection against dust and touch
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Operator Interface Terminal
Brand
Red Lion
Series
Graphite

Electrical

Power Consumption
11W (30V)
Supply Voltage
10V to 30V DC
Sunlight Readable
No (400 cd/m²)
Touch Type
Resistive analog

Mechanical

Housing Material
Cast Aluminum
Display Colour/Type
16M Colors, SVGA

Dimensions & Physical Data

Depth
52.4mm
Height
217.7mm
Width
275.2mm
Panel Cut-Out Size
259.0 × 201.4mm
Display Size
10"

Environmental

Storage Temperature
-20°C to 70°C
Operating Temperature
-20°C to 60°C
IP Rating
IP66

Communication & Control

Ethernet Port Speed
10/100 Mbps
Ethernet Ports
1
Expandable Communications
Yes
Fieldbus Interface
Protocol Conversion
Serial Ports
3
USB Port
1 Device + 2 Host
Supported Ethernet Protocols
10 protocols simultaneously
Supported Serial Protocols
300+ built-in drivers

Safety, Standards & Compliance

Hazardous Location Ratings
II 3 G Ex ic nA IIC T4 Gc, II 3 D Ex tc IIIC T135°C Dc (ATEX/UKEX)
Certifications / Approvals
EN 61326-1, IEC/EN 61010-1, CE, RoHS, UL
