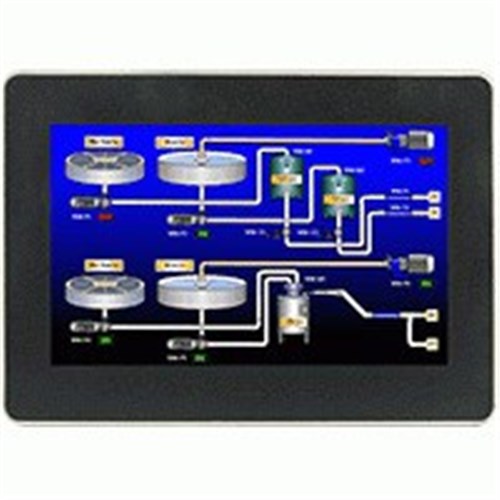

Red Lion G09C1000 Modular Touchscreen HMI 9 in LCD

Product Code: G09C1000

  • 9" LCD touch screen with 800x480 resolution
  • Durable cast aluminium construction
  • Panel mount design for easy installation
  • IP20 protection against dust and moisture
  • Complies with ATEx, CE, IECEx, RoHS standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Rugged Operator Panel
Brand
Red Lion
Series
Graphite

Electrical

Power Consumption
18W (30V)
Supply Voltage
10V to 30V DC
Sunlight Readable
No (400 cd/m²)
Touch Type
Resistive analog

Mechanical

Housing Material
Cast aluminum
Display Colour/Type
WVGA, 16 M

Dimensions & Physical Data

Depth
52.4mm
Height
164.4mm
Width
255.6mm
Panel Cut-Out Size
262mm x 171mm
Display Size
9"

Environmental

Storage Temperature
-20°C to 70°C
Operating Temperature
-20°C to 60°C
IP Rating
IP66

Communication & Control

Ethernet Port Speed
10/100 Mbps
Ethernet Ports
2
Serial Ports
3
USB Port
1 Device, 2 Host
Supported Serial Protocols
300+ industrial protocols

Safety, Standards & Compliance

Hazardous Location Ratings
II 3 G Ex ic nA IIC T4 Gc, II 3 D Ex tc IIIC T135°C Dc (ATEX/UKEX)
Certifications / Approvals
EN 61326-1, IEC/EN 61010-1, CE, RoHS, UL
