Product Code: DAM00PDSG2RA0000

Specifications

General

Product Type

Strain Gage Pid Module

Brand

Red Lion

Series

FlexEdge

Electrical

Analog Resolution 16-bit	Channel Isolation 500 Vrms (various paths listed)	Digital Outputs 3 relay outputs
Output Ratings Relay: 1.5A @ 125VAC/30VDC (55°C	Analog Outputs 3 analog outputs	Input Ratings Input impedance 100 MO, overload 30 V, excitation 5 V or 10 V
Input Type Strain gage bridge	Output Type Relay outputs + analog output	Power Consumption 5.6W
Terminal Type Screw terminals	Analog Inputs 2 strain gage input

Mechanical

Housing Material

Metal + plastic

Dimensions & Physical Data

Depth

157.91mm

Height

114.97mm

Width

48.51mm

Environmental

Storage Temperature

-40°C to 85°C

Operating Temperature

-40°C to 75°C

IP Rating

IP30

Communication & Control

Expandable Communications

Provided by host DA70 Controller

Safety, Standards & Compliance

Hazardous Location Ratings

II 3 G Ex ec IIC T4 Gc ( ATEX )

Certifications / Approvals

CE, EN 61326-1, IEC/EN 61010-1, RoHS Compliant

Accessories & Additional Information

Development Software

Crimson

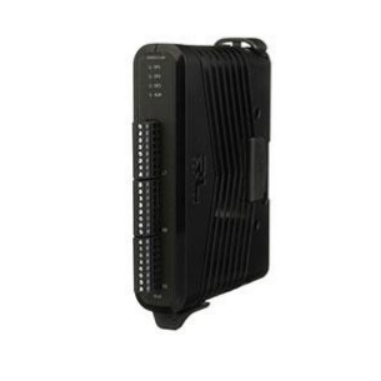

RED LION FLEXEDGE IO SGÂ DUAL STRAIN GAUGE W/ RELAY ANALOG OUT DAM00PDSG2RA0000
