Product Code: E3-32DI24-1

Supports Modbus and ASCII protocols
Operates on 10-30 VDC power
Features Ethernet and RS-485 comms
DIN Rail mounting for easy install
CE, FCC, Marine, UL Div-2 approved

Specifications

General

Product Type

Rugged High-Density I/O Modules

Brand

Red Lion

Series

E3 I/O Modules

Electrical

Channel Isolation 150V (High-speed Ch 1 only)	Digital Inputs 32	Input Ratings 10 Kohm resistance
Input Type 10-30 VDC Sourcing	Supply Voltage 10-30 VDC	Terminal Type Screw Terminals

Mechanical

Housing Material

Hardened metal enclosure

Mounting Method

DIN-Rail

Dimensions & Physical Data

Depth

72.4 mm

Height

134.6 mm

Width

142.2 mm

Environmental

Storage Temperature

-40 to 85 °C

Operating Temperature

-40 to 75 °C

IP Rating

IP54

Communication & Control

Ethernet Port Speed 10/100 Mbps	Ethernet Ports 2	Fieldbus Interface Modbus and Sixnet protocols
Serial Ports 1	USB Port 1	Supported Ethernet Protocols TCP/IP, ARP, UDP, ICMP, DHCP, HTTP, Modbus TCP/UDP (master or slave), Sixnet TCP/UDP (master or slave)
Supported Serial Protocols Sixnet UDR and Modbus RTU/ASCII

Safety, Standards & Compliance

Compliance Standards

UL 508, CSA C22.2/142, IEC 61010-1, CE, FCC part 15, ICES-003, Class A, ABS, DNV, Lloyds

Hazardous Location Ratings

Class I, Division 2, ATEX/IECEx Zone 2

Accessories & Additional Information

Development Software

Crimson 3.0

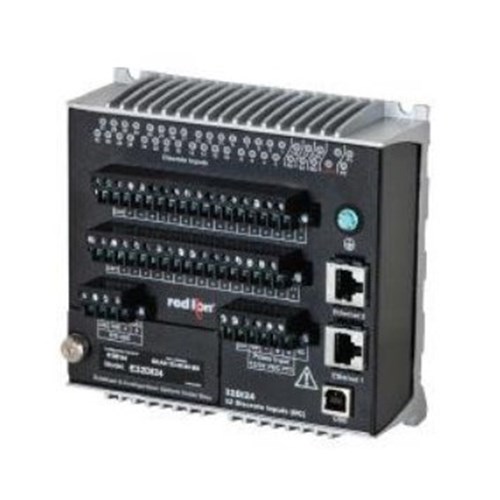

Red Lion E3-32DI24-1 I/O Module Modbus, ASCII 32 Digital Inputs 10-30VDC
