Product Code: DAM00PDP2R000000

PID Controller for precise control
Easy DIN Rail mounting
Operates in -40 to 75°C range
IP30 protection rating
LED indicators for status

Specifications

General

Product Type

Pid Control Module

Brand

Red Lion

Series

FlexEdge

Electrical

Channel Isolation 500 Vrms between I/O and power	Digital Outputs 4 Relay outputs	Output Ratings Form A: 2A @ 30VDC/AC (55°C); Form C: 1A @ 30VDC/AC (55°C)
Input Ratings TC input impedance 20 MO; RTD 150 µA excitation; Process input 10 V / 20 mA range	Input Type Thermocouple (T, E, J, K, R, S, B, N, C), RTD, mV, 0–10 V, 0/4–20 mA	Output Type Relay Outputs (Form A for OP1/OP2/OP4, Form C for OP3)
Power Consumption 2.7W	Terminal Type Screw terminals	Analog Inputs 2 Signal input

Mechanical

Housing Material

Metal + Plastic

Dimensions & Physical Data

Depth

157.91mm

Height

114.97mm

Width

48.51mm

Environmental

Storage Temperature

-40°C to 85°C

Operating Temperature

-40°C to 70°C

IP Rating

IP30

Communication & Control

Expandable Communications

Provided by host DA70 Controller

Safety, Standards & Compliance

Hazardous Location Ratings

Class I Division 2

Certifications / Approvals

CE, EN 61326-1, IEC/EN 61010-1, RoHS Compliant

Accessories & Additional Information

Development Software

Crimson

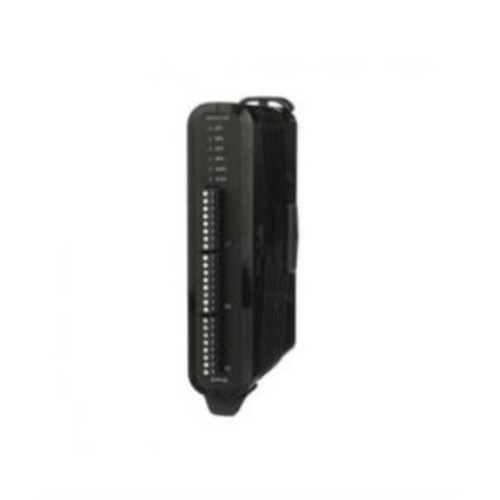

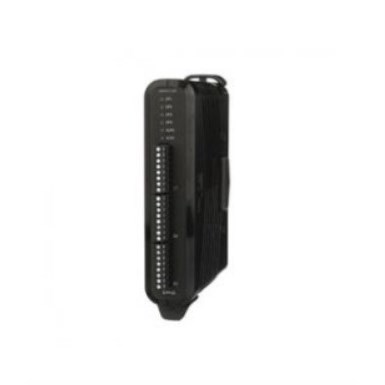

Red Lion DAM00PDP2R000000 Relay Output Module
